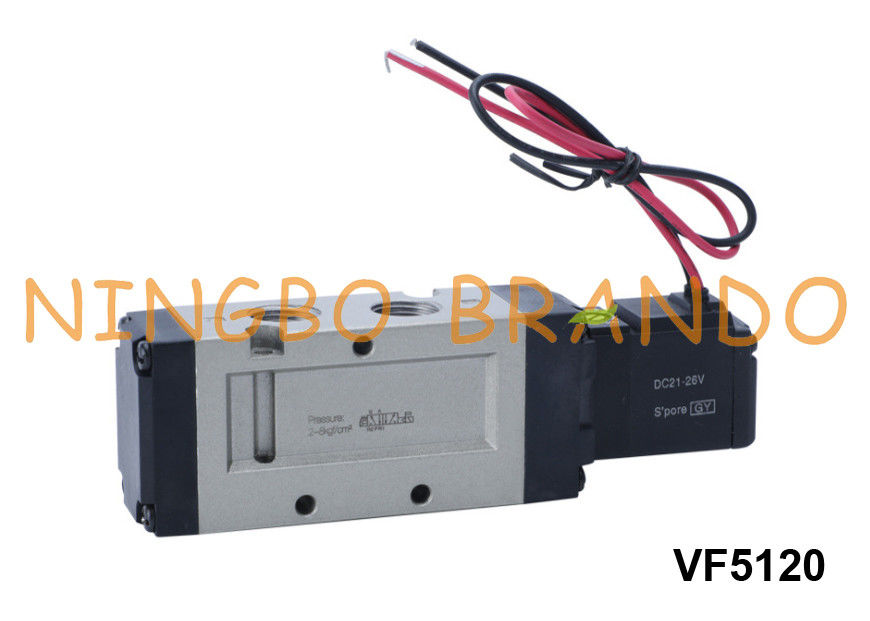

VF5120 SMC Type Air Pneumatic Solenoid Valve 5/2 Way 24VDC 220VAC

VF5120 SMC Type Air Pneumatic Solenoid Valve 5/2 Way 24VDC 220VAC

  • VF5120 SMC Type Air Pneumatic Solenoid Valve 5/2 Way 24VDC 220VAC
VF5120 SMC Type Air Pneumatic Solenoid Valve 5/2 Way 24VDC 220VAC
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: VF5120
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $3 to $ 5 per pc
Packaging Details: Individual box, Carton, Pallet
Delivery Time: 4 to 7 working days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Valve Type: 5 Way 2 Position Port Size: In=Out=Exhaust=3/8''
Pressure Range: 0.15 To 0.8MPa Max Pressure Resistance: 1.2 MPa
Body Material: Aluminum Alloy Wiring Form: Lead Wire Or DIN43650 Connector
Voltages: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
High Light:

5/2 Way Pneumatic Solenoid Valve

,

SMC Solenoid Valve VF5120

,

SMC VF5120

VF5120 SMC Type Air Pneumatic Solenoid Valve 5/2 Way 24VDC 220VAC



Pneumatic solenoid valves can be found in a wide range of industries. They are used in Pneumatic Artificial Muscles (PAM) for robotics and automation. Manufacturing companies that use conveyors belts uses pneumatic valves in their conveyor belt systems. Food and beverage manufacturers use them to make, dispense or preserve food and beverage products.



BRNADO pneumatic valves offer reliability, low power consumption, and have a long life. They are have prewired connections that makes installation, maintenance, and control simple.



Technial Data of VF & VZ Series Pneumatic Solenoid Valves:

Model
VF3130
VF33(4/5)30
VF5120
VF53(4/5)50
VZ5120
VZ53(4/5)50
VF3230
VF5220
VZ5220
Valve Type
5/2 way
5/3 way
5/2 way
5/3 way
5/2 way
5/3 way
Orifice Size
16mm²
(Cv=0.89)
12mm²
(Cv=0.67)
25mm²
(Cv=1.4)
18mm²
(Cv=1)
12mm²
(Cv=0.67)
9mm² (Cv=0.50)
Fluid
Air (to be filtered by 40 μm filter element)
Operating Pressure
0.15 to 0.8 MPa
Proof Pressure
1.2 MPa
Body
Material
Aluminum Alloy
Max
Frequency
5 cycle / sec
Voltage
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Wire Form
Lead Wire or DIN43650 Connector


Dimension of VF5120 Pneumatic Solenoid Valve:

VF5120 SMC Type Air Pneumatic Solenoid Valve 5/2 Way 24VDC 220VAC 0



Production Video of Pneumatic Solenoid Valve:



More Pneumatic Products for you to choose:



2/2 Way Pneumatic Valves 3/2 Way Pneumatic Valves 5/2 Way Pneumatic Valves 5/3 Way Pneumatic Valves
Festo Type FRC-1-D-MAXI-A Pneumatic Air Preparation Unit 7 Festo Type FRC-1-D-MAXI-A Pneumatic Air Preparation Unit 8 Festo Type FRC-1-D-MAXI-A Pneumatic Air Preparation Unit 9 Festo Type FRC-1-D-MAXI-A Pneumatic Air Preparation Unit 10
Namur Solenoid Valves Air Pilot Valves Pneumatic Cylinders Silencers and Fittings
Festo Type FRC-1-D-MAXI-A Pneumatic Air Preparation Unit 11 Festo Type FRC-1-D-MAXI-A Pneumatic Air Preparation Unit 12 VF5120 SMC Type Air Pneumatic Solenoid Valve 5/2 Way 24VDC 220VAC 7 Festo Type FRC-1-D-MAXI-A Pneumatic Air Preparation Unit 14Festo Type FRC-1-D-MAXI-A Pneumatic Air Preparation Unit 15



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
