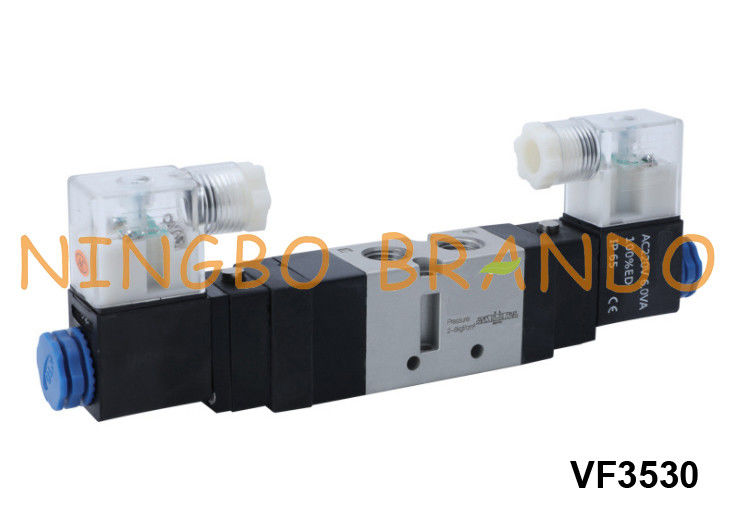

VF3530 SMC Type Pneumatic Air Solenoid Valve 5/3 Way 24 Volt 220 Volt

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	VF3530

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	$3 to $ 5 per pc
Packaging Details:	Individual box, Carton, Pallet
Delivery Time:	4 to 7 working days
Payment Terms:	L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability:	200000 pcs per month

Contact Now

Detailed Product Description

Valve Type:	5 Way 3 Position	Port Size:	In=Out=1/4'', Exhaust=1/8''
Pressure Range:	0.15 To 0.8MPa	Max Pressure Resistance:	1.2 MPa
Body Material:	Aluminum Alloy	Wiring Form:	Lead Wire Or DIN43650 Connector
Voltages:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
High Light:	Pneumatic Solenoid Valve 5/3 Way , Pneumatic Solenoid Valve 220 Volt , SMC VF3530

VF3530 SMC Type Pneumatic Air Solenoid Valve 5/3 Way 24 Volt 220 Volt

BRANDO is a Pneumatic Valve manufacturer and exporter in Ningbo, China, which has more than 10 years experience. The most common types are 2/2 way, 3/2 way, 5/2 way and 5/3 way. The valves can be single or double acting (one or two solenoids).

* 5/2 Way Pneumatic Valve

* 5/3 Way Pneumatic Valve

* 3/2 Way Pneumatic Valve

* 2/2 Way Pneumatic Valve

Pneumatic valves are electrically controlled to direct air flow to sequence operations in pneumatic systems. Pneumatic valves are used to control cylinders, rotary actuators, grippers and other pneumatic devices. Use a manifold to simplify plumbing for a bank of valves. Modular systems even allow networked control of valve groups.

Technial Data of VF & VZ Series Pneumatic Solenoid Valves:

Model	VF3130	VF33(4/5)30	VF5120	VF53(4/5)50	VZ5120	VZ53(4/5)50
Model	VF3230	VF33(4/5)30	VF5220	VF53(4/5)50	VZ5220	VZ53(4/5)50
Valve Type	5/2 way	5/3 way	5/2 way	5/3 way	5/2 way	5/3 way
Orifice Size	16mm² (Cv=0.89)	12mm² (Cv=0.67)	25mm² (Cv=1.4)	18mm² (Cv=1)	12mm² (Cv=0.67)	9mm² (Cv=0.50)
Fluid	Air (to be filtered by 40 μm filter element)
Operating Pressure	0.15 to 0.8 MPa
Proof Pressure	1.2 MPa
Body Material	Aluminum Alloy
Max Frequency	5 cycle / sec
Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Wire Form	Lead Wire or DIN43650 Connector
