| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | VF3430 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $3 to $ 5 per pc |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 200000 pcs per month |
| Valve Type: | 5 Way 3 Position | Port Size: | In=Out=1/4'', Exhaust=1/8'' |
|---|---|---|---|
| Pressure Range: | 0.15 To 0.8MPa | Max Pressure Resistance: | 1.2 MPa |
| Body Material: | Aluminum Alloy | Wiring Form: | Lead Wire Or DIN43650 Connector |
| Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | ||
| High Light: | Pneumatic Solenoid Valve 5/3 Way,Pneumatic Solenoid Valve 220VAC,SMC VF3430 |
||

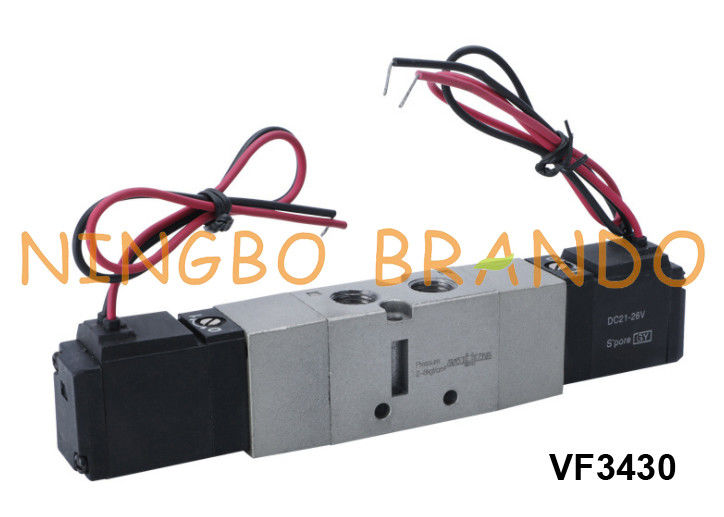

VF3430 SMC Type Pneumatic Air Solenoid Valve 5/3 Way 24VDC 220VAC
Directional control pneumatic solenoid valves are electrically operated to direct air flow to sequence operations in pneumatic systems. Basic solenoid valves are used to control cylinders, rotary actuators, grippers and other pneumatic devices, and are available in a range of body styles and operating characteristics.
Five-port valves are typically used with double-acting cylinders. The double-solenoid action with spring return to center position allows free movement of the cylinder (center exhaust) or position holding (center closed) in the de-energized state.
Technial Data of VF & VZ Series Pneumatic Solenoid Valves:
Production Video of Pneumatic Solenoid Valve:
More Pneumatic Products for you to choose:
| 2/2 Way Pneumatic Valves | 3/2 Way Pneumatic Valves | 5/2 Way Pneumatic Valves | 5/3 Way Pneumatic Valves |
 |
|
|
|
| Namur Solenoid Valves | Air Pilot Valves | Pneumatic Cylinders | Silencers and Fittings |
|
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Brandon
Tel: +8613454729544
