| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | VF3330 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $3 to $ 5 per pc |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 200000 pcs per month |
| Valve Type: | 5 Way 3 Position | Port Size: | In=Out=1/4'', Exhaust=1/8'' |
|---|---|---|---|
| Pressure Range: | 0.15 To 0.8MPa | Max Pressure Resistance: | 1.2 MPa |
| Body Material: | Aluminum Alloy | Wiring Form: | Lead Wire Or DIN43650 Connector |
| Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | ||
| High Light: | Pneumatic Solenoid Valve 5/3 Way,Pneumatic Solenoid Valve 220V,SMC VF3330 |
||

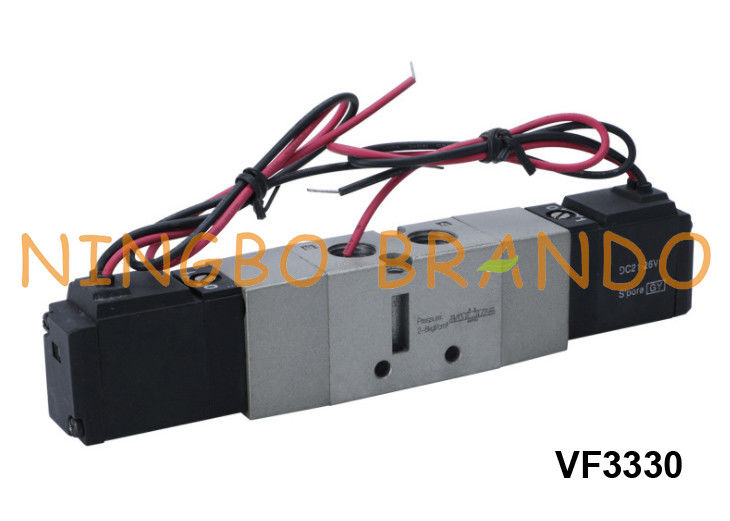

VF3330 SMC Type Pneumatic Air Solenoid Valve 5/3 Way 24V 220V
Short Description:
A 5/3 way pneumatic solenoid valve has five ports and three states. They have two solenoids that each can control a valve state. If no solenoid is energized, the valve returns to the central state. Therefore, the valve is mono-stable. The central state can have different functions, such as closing off all ports. An example of an application is a double acting cylinder that has to be locked at intermediate positions along the stroke.
Technial Data of VF & VZ Series Pneumatic Solenoid Valves:
