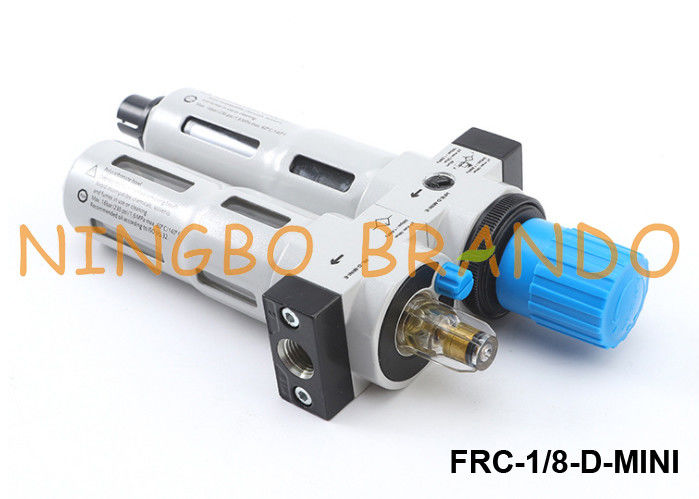

Festo Type FRC-1/8-D-MINI Pneumatic Filter Regulator Lubricator

Festo Type FRC-1/8-D-MINI Pneumatic Filter Regulator Lubricator

Here at BRANDO, we have a wide range of FRL combined boxsets to choose from. To understand how an FRL unit works we will explain the three major FRL unit functions individually, starting with the Filter.

FILTER
Filtering compressed air is widely regarded as the initial phase of air preparation. To allow machinery and pneumatic components to work at their optimum, they must be fed with clean, filtered air that is free of dust, water and other particles. Various filtration levels are available between 5 and 40 microns.

PRESSURE REGULATORS
Air pressure regulators benefit the FRL boxset in many ways. Firstly, and most importantly it provides an element of safety. Subsequent to this, it also helps to reduce costs. The role of a regulator is to control the air pressure to air tools, air gauging equipment and cylinders. The air pressure is regulated by a spring which acts through a diaphragm.

PNEUMATIC LUBRICATORS
Like pressure regulators, the lubricator function of an FRL unit ensures that the air is dosed with a small amount of lubrication oil to help pneumatic components work effectively. Lubricators ensure that the correct amount of oil is being used to reduce the friction between moving components. This feature is very important to ensure a long machinery life span.

Specification of FRC series Filter Regulator Lubricator:

Main Parts Material of FRC series Filter Regulator Lubricator:

Dimension of FRC series Filter Regulator Lubricator:
