SCG353A047 SCG353A050 SCG353A051 400425 Solenoid Valve Coil

SCG353A047 SCG353A050 SCG353A051 400425 Solenoid Valve Coil

The types of solenoid coils are mainly the following: thermoplastic coils, thermosetting coils, explosion-proof coils, waterproof coils, and varnish-type coils.

Among them, the thermoplastic coil and the thermosetting coil belong to a plastic-type electromagnetic coil, and the thermoplastic coil has better weather resistance and toughness, and the thermosetting coil has a higher temperature resistance level, and the shrinkage is smaller during injection molding, and the shape is relatively flat.

The following is a description of a thermoset coil that is widely used in ASCO type pulse diaphragm valves for automatic control.

What is a solenoid?
A solenoid is a device comprised of a coil of wire, the housing and a moveable plunger (armature). When an electrical current is introduced, a magnetic field forms around the coil which draws the plunger in. More simply, a solenoid converts electrical energy into mechanical work.
The coil is made of many turns of tightly wound copper wire. When an electrical current flows through this wire, a strong magnetic field/flux is created.
The housing, usually made of iron or steel, surrounds the coil concentrating the magnetic field generated by the coil.
The plunger is attracted to the stop through the concentration of the magnetic field providing the mechanical force to do work.

Technical parameter of 14 mm 400325342 pulse diaphragm valve solenoid coils:


Main dimension of SCG353A043 pulse jet valve 400425101 electromagnetic coils:


Production dispaly of ASCO type 400425118 pulse solenoid valve coil:

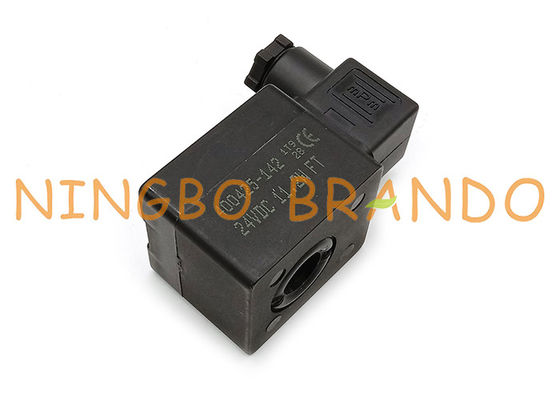

Product real display of 400425117 AC220V / 24VDC ASCO type pulse valve coils:


ASCO Type pulse valve related repair kits and coils accessories table:


Three tips for the usage of AC24V 400425101 Asco type electric magnetic coils:
1. The AC coil must not be energized separately (ie, the coil is not sheathed and the spool is energized);
2. The electromagnetic coil should be stored in a well ventilated, no moisture, no corrosive gas, liquid environment;
3. The grounding pole of the electromagnetic coil must be grounded reliably. Do not connect to the power supply. Otherwise, there is danger of leakage or electric shock.
