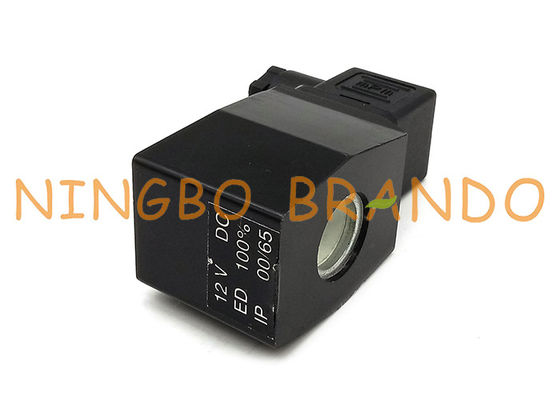

14.5mm Hole Diameter DIN 43650A AB410 Waterproof Solenoid valve Coil
This solenoid valve coil is applied in CKD AB41-02 / AB41-03 series solenoid valves. Solenoid valve core is the sealing and sealing part of the solenoid coil, also known as the solenoid valve coil. That is to say, the injured and sealed electrical coils are sealed with insulation material, leaving only terminals, insulation, waterproof, anti-riot, fireproof, anti-corrosion, etc.
Coil bobbin refers to the column around the enameled wire. An electromagnetic coil is a coil of enameled wire wrapped around a skeleton and molded from insulating material. The general framework material is PA, plastic, and requires insulation grade. The solenoid valve coil is equivalent. The winding of the electromagnet is then placed at the center of the solenoid valve coil to form the core. When energized, the coil generates a magnetic field to attract the core.
Technical parameter of CKD AB41-02 / AB41-03 Series Solenoid Valve Coils:
Model number
BB16039001
Staard voltage
DC24V, AC220V (±10%)
Normal power
DC: 18Watt, AC: 26VA
Material
Copper, Plastic
Wire class
H
Connection type
DIN43650A
Application
CKD AB41-02 / AB41-03 Series Solenoid Valve
Hole size
16 mm
Height
39 mm
Width
38.5 mm
Main dimension of CKD Type AB41-02 / AB41-03 Solenoid Coils:

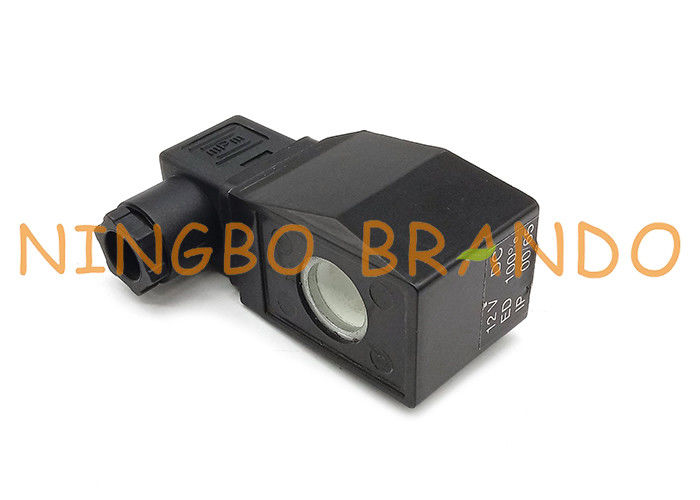

Detail enlargement of AB41-02 / AB41-03 CKD Type Electromagnetic Coil:
Applied in CKD AB41-02 / AB41-03 Series Water Solenoid Valve:
More details about CKD Type AB41-02 / AB41-03 Solenoid Coils in below Youtube Video:
Solenoid valve assembly temperature rise and maximum temperature requirements:
According to the heat resistance grade determined by GB/T 11021, the maximum temperature obtained by temperature rise of electromagnetic coil assembly and increase of ambient temperature shall not exceed the following table:
Insulation class
Maximum normal temperature rise (℃)
Maximum temperature(℃)
B
90
130
F
115
155
H
140
180
N
160
200
R
180
220
Tips: Not applicable to pulsating operating coils!
Construction mode of electromagnetic coil: bobbin or no bobbin
First, whether the resolution coil adopts a bobbin structure or a bobbinless structure depends on the request and cost conditions.
1. Smaller electromagnetic coils for heavy working conditions can adopt a bobbinless construction and are also suitable for a large amount of cost. The problem is that it is hard to wear when the outer layer is insulated. The small coil is designed to have a bobbin because the inner hole is small and difficult to ensure insulation.
2. The smaller electromagnetic coil used for light working conditions, suitable for adopting the plastic bobbin, and simplifying the operation of the outer layer insulation of the coil compared with the non-skeletal coil. But it must be noted that the heat dissipation conditions of the coil have deteriorated.
3. The DC coil is preferably wound around the metal bobbin, and the target is to use the inner surface of the coil to dissipate heat.
4. In the above situation, it is best to adopt a combined coil bobbin:
1) A small amount of electromagnetic coil is used, and it is not necessary to manufacture a plastic bobbin at this time.
2) When a large-sized electromagnetic coil adopts a bobbinless coil, it is difficult to manufacture, and it is impossible to manufacture a plastic bobbin.
3) The coil with fewer turns and thicker wires (wire diameter greater than 0.51~0.8mm) is preferably designed as a bobbin-free structure. In the absence of any restrictions, it is desirable to adopt a bobbinless construction.
