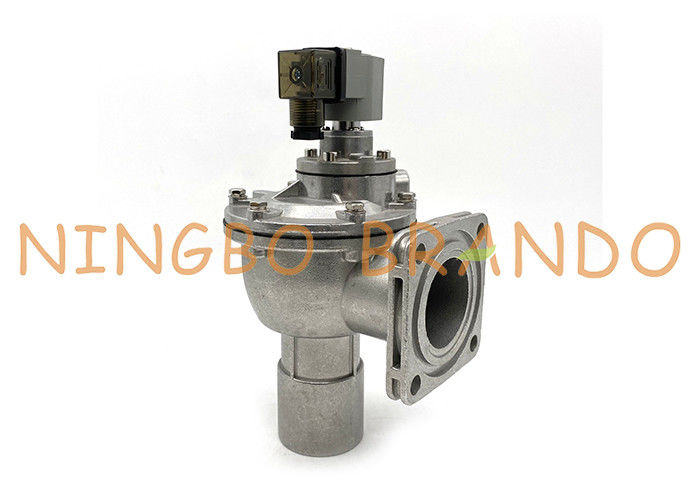

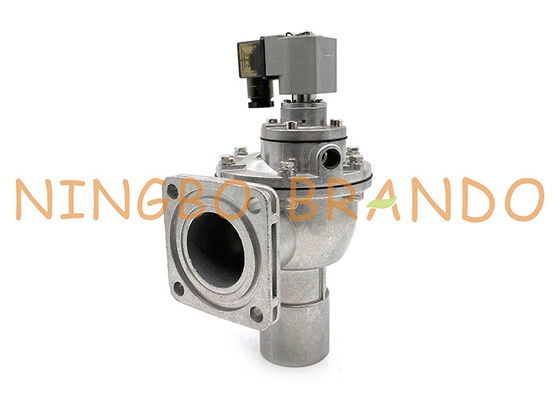

CA45FS 1-1/2'' 1.5'' Inch Flange Integral Pilot Dust Collector Valve

CA45FS 1-1/2'' 1.5'' Inch Flange Integral Pilot Dust Collector Valve

  • CA45FS 1-1/2'' 1.5'' Inch Flange Integral Pilot Dust Collector Valve
  • CA45FS 1-1/2'' 1.5'' Inch Flange Integral Pilot Dust Collector Valve
CA45FS 1-1/2'' 1.5'' Inch Flange Integral Pilot Dust Collector Valve
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: CA45FS
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Type: Flange Diaphragm Valve Power: Solenoid
Media: Air Port Size: 1.5'';1-1/2''Inch
Structure: Diaphragm Body Material: Aluminum Alloy
Diaphragm Material: NBR(Common), FKM(Available) Number Of Diaphragm: 1
Pressure: 0.1 To 0.8MPa Temperature: -25 To +80℃
High Light:

CA45FS Dust Collector Valve

,

Integral Pilot Dust Collector Valve

,

Goyen Type CA45FS

CA45FS 1-1/2'' 1.5'' Inch Flange Integral Pilot Dust Collector Valve



Maintenance of dust collector:
1. The wind-locking device of the dust collector must ensure that the lock air is effective and the material is smoothly discharged. If the lock air is invalid, the negative pressure will be seriously lost in the return ash port, resulting in poor dust collection effect. Material, when the dust is severe, it will be filled with the inside of the dust collector, causing the dust to fail.

2. The pulse valve inspection of the dust collector ensures flexible and effective action. If there is air leakage, the diaphragm and internal corresponding parts (such as: valve core, spring, orifice) should be replaced. If the pulse valve fails, the blowing effect will be poor. The surface area of the filter bag cannot be removed to reduce the dust collection capacity.

3. Check the lifting cylinder of the dust collector to ensure that the lifting cylinder moves smoothly and ensure that the cylinder gland is tightened and not loose. Otherwise, the gland pressure will not be tight and can not be lifted; if the pressure is not tight, it will cause the cleaning to be cleaned. If it cannot be lifted, the corresponding air chamber cannot be collected.

4. The electromagnetic two-way five-way reversing valve inspection, to ensure smooth operation, no air leakage, no dust inside, otherwise it will cause the failure of the lifting cylinder.



Technical Data of Goyen Pulse Jet Valve:

Model
CAC25FS
CAC45FS
Working Pressure
0.3~0.8Mpa
Working Temperature
-5~+55℃
Voltage
AC24V, AC110V, AC220V, DC24V
Inlet and Out Pipe Size
1 1/2'' IN, 1'' OUT
2'' IN, 1 1/2'' OUT
Remote or Integral
Integral Pilot
Connection Type
Weldless Flange
Body Material
Aluminium ADC12
Diaphragm Material
NBR(Common), Viton(Available)


Main Dimension:

CA45FS 1-1/2'' 1.5'' Inch Flange Integral Pilot Dust Collector Valve 0



CA RCA Series Pulse Jet Valve For Dust Collector System:



Thread Valve
1/2''
3/4''
1''
1.5''
1.5''
2''
2.5''
3''
CA15T
CA20T
CA25T
CA35T
(Single Diaphragm)
CA45T
(Double Diaphragm)
CA50T
CA62T
CA76T
Dresser Nut Valve
1''
1.5''
CA25DD
CA45DD
Flanged Valve
1.5'' Inlet
2'' Inlet
CA25FS
CA45FS
Immersion Valve
φ60 Outlet
φ75 Outlet
φ89 Outlet
φ86 Outlet
CA50MM
CA62MM
CA89MM
Remote Pilot Valve
1/8''
1''
1.5''
2''
RCA3D2
RCA25DD
RCA45T
RCA50T



Five tips for extending the life of Goyen type FS series flange connection pulse jet valve for dust collector bag filter:

1. First ensure that the voltage of the dust collector pulse jet valve is stable when in use.
2. The air supply pressure of the dust collector must be too low or the dust source is unstable. Before use, it is necessary to check the wiring line of the dust removal trouble regularly.
3. Replace the defective dust collector pulse jet valve parts in time. In the environment with temperature difference, the dust collector pulse jet valve should be used with the oil water separator.
4. The newly installed dust collector first cleans the solder joint impurities in the air bag.
5. Ensure that the clean air temperature of the valve body entering the dust collector pulse jet valve is not lower than -5 °C.
