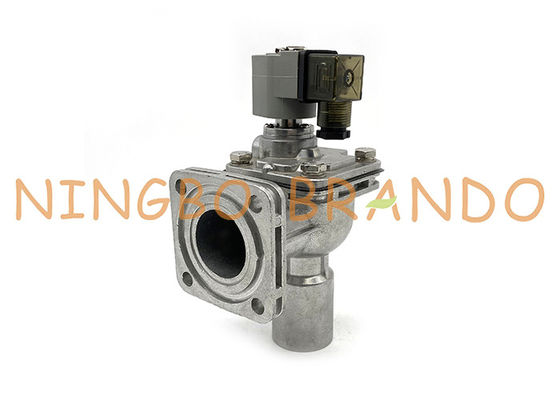

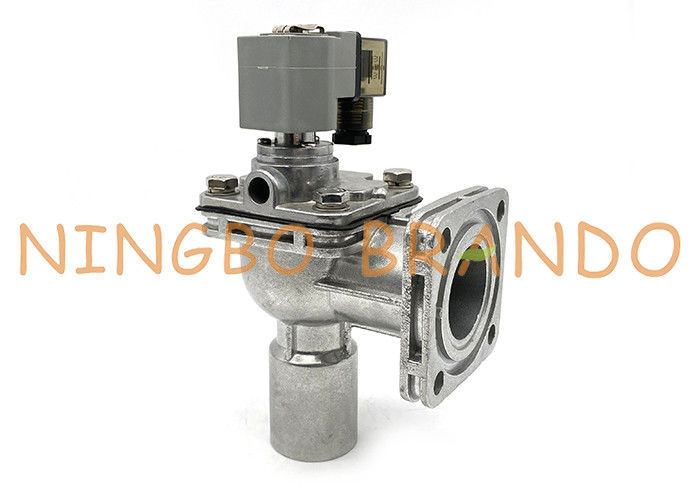

CA25FS FS Series Flange Integral 1'' Diaphragm Pulse Jet Valve

CA25FS FS Series Flange Integral 1'' Diaphragm Pulse Jet Valve

  • CA25FS FS Series Flange Integral 1'' Diaphragm Pulse Jet Valve
  • CA25FS FS Series Flange Integral 1'' Diaphragm Pulse Jet Valve
CA25FS FS Series Flange Integral 1'' Diaphragm Pulse Jet Valve
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: CA25FS
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Type: Flange Diaphragm Valve Power: Solenoid
Media: Air Port Size: 1''Inch
Structure: Diaphragm Body Material: Aluminum Alloy
Diaphragm Material: NBR(Common), FKM(Available) Number Of Diaphragm: 1
Pressure: 0.1 To 0.8MPa Temperature: -25 To +80℃
High Light:

CA25FS Pulse Jet Valve

,

Diaphragm Pulse Jet Valve

,

Goyen Type CA25FS

CA25FS FS Series Flange Integral 1'' Diaphragm Pulse Jet Valve



Appliction:
The Goyen FS-series are high-performance flanged valves for reverse pulse jet systems in dust collectors. They are used around the world to frequently clean the filters in systems aiming to control the dispersion of noxious substances, improve indoor air quality in workplaces, or prevent harmful dust emissions.


These flanged valves are suitable for use in dust management systems in all types of industries and processes, including:
cement production
mining applications
silo and conveyor systems, bulk goods handling
general industrial dust collection
improving indoor workplace air quality
preventing harmful emissions
power industry: protecting boilers and gas turbines from dust particles





Technical Data of Goyen Pulse Jet Valve:

Model
CAC25FS
CAC45FS
Working Pressure
0.3~0.8Mpa
Working Temperature
-5~+55℃
Voltage
AC24V, AC110V, AC220V, DC24V
Inlet and Out Pipe Size
1 1/2'' IN, 1'' OUT
2'' IN, 1 1/2'' OUT
Remote or Integral
Integral Pilot
Connection Type
Weldless Flange
Body Material
Aluminium ADC12
Diaphragm Material
NBR(Common), Viton(Available)


Main Dimension:

CA25FS FS Series Flange Integral 1'' Diaphragm Pulse Jet Valve 0



CA RCA Series Pulse Jet Valve For Dust Collector System:



Thread Valve
1/2''
3/4''
1''
1.5''
1.5''
2''
2.5''
3''
CA15T
CA20T
CA25T
CA35T
(Single Diaphragm)
CA45T
(Double Diaphragm)
CA50T
CA62T
CA76T
Dresser Nut Valve
1''
1.5''
CA25DD
CA45DD
Flanged Valve
1.5'' Inlet
2'' Inlet
CA25FS
CA45FS
Immersion Valve
φ60 Outlet
φ75 Outlet
φ89 Outlet
φ86 Outlet
CA50MM
CA62MM
CA89MM
Remote Pilot Valve
1/8''
1''
1.5''
2''
RCA3D2
RCA25DD
RCA45T
RCA50T



The dust cleaning device of the bag filter:



The dust cleaning device of the bag filter is an important component device. According to the different cleaning methods, the bag filter can be divided into the following categories. The periodic operation of the machine is used to shock the filter bag to achieve the purpose of cleaning. This method can also be divided into two types, namely continuous shock and intermittent shock. These two types of choices According to the actual situation and the density of dust to choose; the use of compressed air instead of mechanical shock, the principle is the same as the principle of mechanical shock, but the way of shock is different; when the dust is deposited, you can choose pulse cleaning, release compression The moment of air will affect the atmospheric pressure of the surrounding air.



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing



Welcome to your any question and inquiry!
