Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: RCA25DD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Name: RCA25DD Pulse Jet Valve Remote Or Integral Pilot: Remote Pilot
Inlet Pipe Size: φ35.5 Outlet Pipe Size: φ35.5
Structure: Diaphragm Diaphragm Material: NBR (Buna)
Threaded Pulse Jet Valve: CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T Dresser Nut Pulse Jet Valve: CA25DD, RCA25DD, CA45DD
Immersion Pulse Jet Valve: CA50MM, CA62MM, CA76MM, CA89MM Flanged Pulse Jet Valve: CAC25FS, CAC45FS
Remote Pilot Pulse Jet Valve: RCA3D2, RCA25DD, RCA45T, RCA50T Working Pressure Range: 0.35 To 0.85 MPa
Voltage: 24VDC, 220VAC
High Light:

RCA25DD Dust Collector Valve

,

Quick Mount Dust Collector Valve

,

Goyen Type RCA25DD

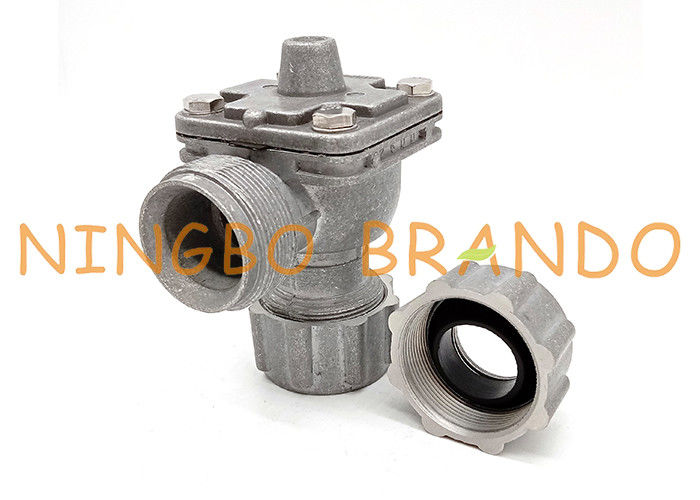

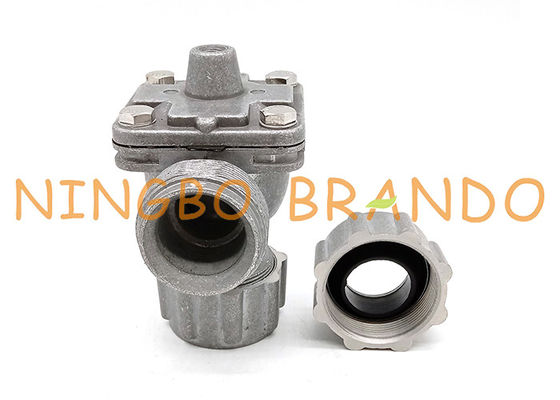

RCA25DD RCA25DD010 RCA25DD000 1" Quick Mount Dust Collector Valve



CA & RCA Series Pulse Jet Valves:

1. Threaded Pulse Jet Valve: CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T

2. Dresser Nut Pulse Jet Valve: CA25DD, RCA25DD, CA45DD

3. Immersion Pulse Jet Valve: CA50MM, CA62MM, CA76MM, CA89MM

4. Flanged Pulse Jet Valve: CAC25FS, CAC45FS

5. Remote Pilot Pulse Jet Valve: RCA3D2, RCA25DD, RCA45T, RCA50T





Technical data of DD Series Pulse Jet Valve:

Model
RCA20DD
RCA25DD
RCA45DD
Nominal Size
20
25
45
Port size
mm
20
25
40
in
3/4
1
1 1/2
Number of Diaphragms
1
1
2
Flow
Kv
12
20
44
Cv
14
23
51
Pressure (Psi)
5 to 125
5 to 125
5 to 125
Temperature℃
NBR
-40 to 82
-40 to 82
-40 to 82
FKM
-29 to 232
-29 to 232
-29 to 232

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit.



List of All CA Series Pulse Jet Valves:

Thread Valve
1/2''
3/4''
1''
1.5''
1.5''
2''
2.5''
3''
CA15T
CA20T
CA25T
CA35T
(Single Diaphragm)
CA45T
(Double Diaphragm)
CA50T
CA62T
CA76T
Dresser Nut Valve
1''
1.5''
CA25DD
CA45DD
Flange Valve
1.5'' Inlet
2'' Inlet
CAC25FS
CAC45FS
Immersion Valve
φ60 Outlet
φ75 Outlet
φ89 Outlet
φ86 Outlet
CA50MM
CA62MM
CA76MM
CA89MM
Remote Pilot Valve
1/8''
1''
1.5''
2''
RCA3D2
RCA25DD
RCA45T
RCA50T



Main Dimension of RCA25DD Pulse Jet Valve:

RCA25DD RCA25DD010 RCA25DD000 1" Quick Mount Dust Collector Valve 0



Product Features:
1. Ready for use in any dust collector design
* For noxious substance control and environmental dust management



2. Cost savings
* Increased pulse efficiency, reduced energy consumption
* Durable materials and wide temperature range enhance lifespan
* Longer filter life, lower dust collector OPEX



3. Compliance
* With environmental and health & safety regulations



4. Ease of installation
* No welding required with 90° connections directly onto squaretanks



Brando Supply:

 RCA25DD RCA25DD010 RCA25DD000 1" Quick Mount Dust Collector Valve 1RCA25DD RCA25DD010 RCA25DD000 1" Quick Mount Dust Collector Valve 2RCA25DD RCA25DD010 RCA25DD000 1" Quick Mount Dust Collector Valve 3RCA25DD RCA25DD010 RCA25DD000 1" Quick Mount Dust Collector Valve 4

       BFEC Pulse Jet Valve              CA/RCA Pulse Jet Valve                353 Pulse Jet Valve               Other Pulse Jet Valve



  RCA25DD RCA25DD010 RCA25DD000 1" Quick Mount Dust Collector Valve 5RCA25DD RCA25DD010 RCA25DD000 1" Quick Mount Dust Collector Valve 6RCA25DD RCA25DD010 RCA25DD000 1" Quick Mount Dust Collector Valve 7RCA25DD RCA25DD010 RCA25DD000 1" Quick Mount Dust Collector Valve 8

             Pulse Controller                     Diaphragm Repair Kit                Solenoid Valve Coil        Solenoid Valve Armature Assembly
