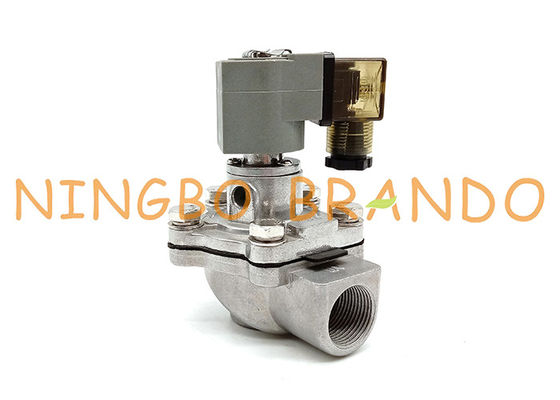

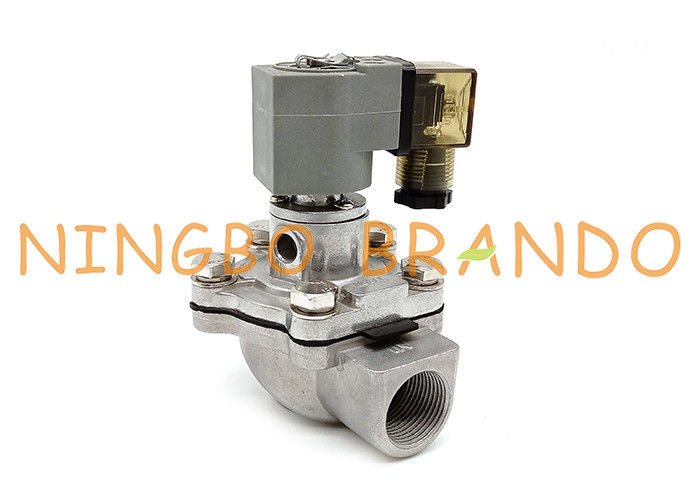

CA20T CA20T010-300 CA20T010-305 3/4'' Inch Right Angle Pulse Jet Valve

CA20T CA20T010-300 CA20T010-305 3/4'' Inch Right Angle Pulse Jet Valve

CA20T CA20T010-300 CA20T010-305 3/4'' Inch Right Angle Pulse Jet Valve
video
CA20T CA20T010-300 CA20T010-305 3/4'' Inch Right Angle Pulse Jet Valve
Product Details:
Place of Origin: CHINA
Brand Name: BRANDO
Certification: CE
Model Number: CA20T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Inner Box,Carton,Pallet
Delivery Time: 4-7 days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 165000 pieces per month
Contact Now
Detailed Product Description
Port Size: 3/4'' Coil Voltage: 24VDC, 220VAC
Working Pressure Range: 0.3 To 0.8MPa Threaded Pulse Jet Valve: CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T
Dresser Nut Pulse Jet Valve: CA25DD, RCA25DD, CA45DD Immersion Pulse Jet Valve: CA50MM, CA62MM, CA76MM, CA89MM
Flanged Pulse Jet Valve: CAC25FS, CAC45FS Remote Pilot Pulse Jet Valve: RCA25DD, RCA20T, RCA45T, RCA50T, RCA62T
Application: Cartridge Filters, Envelope Filters, Ceramic Filters, Sintered Metal Fiber Filters
High Light:

Right Angle Pulse Jet Valvev

,

CA20T Pulse Jet Valve

,

Goyen Type CA20T

CA20T CA20T010-300 CA20T010-305 3/4'' Inch Right Angle Pulse Jet Valve





This is CA20T Goyen Type Pulse Jet Valve; Reference No: CA20T000, CA20T001, CA20T010, CA20T000-300, CA20T000-305, CA20T000-331, CA20T001-300, CA20T001-305, CA20T001-331, CA20T010-300, CA20T010-305. 3/4'' inlet and outlet threaded port size; NBR diaphragm; 24V DC, 220V AC (50/60Hz) voltages for you to choose; other voltages can be customized.



Pulse Jet Valve, also called diaphragm valve acts as a “switch” for compressed air in the dust clean blowing system for pulse bag filters. It is controlled by the electric signals from the pulse-jet control device. This system cleans the filter bags cluster by cluster with high-pressure blowing to keep the pressure resistance of the baghouse within a pre-set range, and thus ensure the processing capability and the dust-collecting efficiency of the baghouse.



Dimension of CA20T Goyen Type Pulse Jet Valve:

CA20T CA20T010-300 CA20T010-305 3/4'' Inch Right Angle Pulse Jet Valve 0



Video of CA20T Goyen Type Pulse Jet Valve:



Technical data of Right Angle Pulse Jet Valves:

Model No
CA15T
CA20T
CA25T
CA35T
CA45T
CA50T
CA62T
CA76T
Nonimal size
φ15
φ20
φ25
φ35
φ45
φ50
φ62
φ76
Port Size
G1/2''
G3/4''
G1''
G1 1/4''
G1 1/2''
G2''
G2 1/2''
G3''
Working pressure
0.3 to 0.8MPa
Temp. range
-5℃ to 55℃
Relative humidity
≤85%
Working
medium
Compressed clean air
Voltage
24VDC, 220VAC



More Goyen Type Pulse Valve For You to Choose:


CA20T CA20T010-300 CA20T010-305 3/4'' Inch Right Angle Pulse Jet Valve 1CA20T CA20T010-300 CA20T010-305 3/4'' Inch Right Angle Pulse Jet Valve 2CA20T CA20T010-300 CA20T010-305 3/4'' Inch Right Angle Pulse Jet Valve 3CA20T CA20T010-300 CA20T010-305 3/4'' Inch Right Angle Pulse Jet Valve 4

       Threaded Type                   Immersion Type                Dresser Nut Type             Flanged Type

CA20T CA20T010-300 CA20T010-305 3/4'' Inch Right Angle Pulse Jet Valve 5CA20T CA20T010-300 CA20T010-305 3/4'' Inch Right Angle Pulse Jet Valve 6CA20T CA20T010-300 CA20T010-305 3/4'' Inch Right Angle Pulse Jet Valve 7CA20T CA20T010-300 CA20T010-305 3/4'' Inch Right Angle Pulse Jet Valve 8

          RCA Series                          Solenoid Coil                Armature Assembly            Pulse Controller



Working Principles:



The electromagnetic pulse valve is composed of electromagnetic pilot operator, diaphragm and valve body. Due to difference of pressure acting on two sides of the diaphragm, the diaphragm is pressed closely against the outlet of valve to keep the valve stays in “closed” position.



When energized by an electric signal from the controller, the electromagnetic armature will move to open the discharge opening of back cavity.



The compressed air in back cavity bursts out to relief pressure and pressurized air in front cavity pushes up the diaphragm to open the main outlet of valve, then the electromagnetic pulse valve opens and starts to blow.



When the signal disappears and the spring works immediately to send the pilot operator back to its original position and close the discharging opening. The diaphragm will close the passage by the effect of the pressure in the front cavity and the spring. The pulse valve stops blowing.



The orifice in the diaphragm damps the airflow when the armature is lifting up for releasing the pressure. When the discharge hole closed, the pressure gas will fill into the front cavity to close the passage by the diaphragm. The pulse valve stops blowing.



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
