|Place of Origin:||China|
|Minimum Order Quantity:||3 pc|
|Packaging Details:||also can be packed by color card and can be customized|
|Delivery Time:||7 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||100000pcs per month|
|Power:||Pneumatic||Temperature Of Media:||-20~80℃|
K7604 Diaphragm Repair Kit,
Low Pressure Diaphragm Repair Kit,
Goyen Type K7604

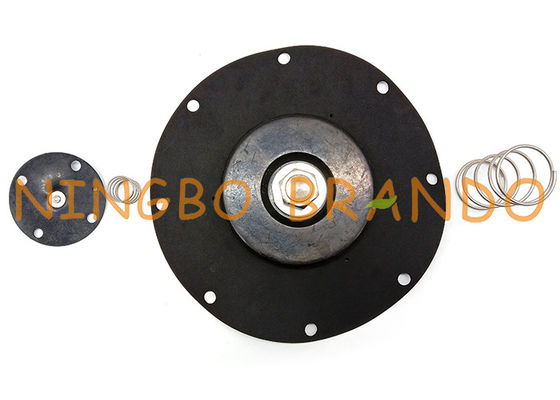

K7604 3'' Inch CA76T RCA76T Low Pressure Diaphragm Repair Kit
|Model||Goyen CA76T pulse valve diaphragm G76|
|Hole number for mounting||8|
|Working medium||Clean Air|
|Diaphragm working life||More than 1 million cycles|
|Material||VITON, NBR, HNBR, EPDM, FPM/FKM, SILICONE, CR|
VITON Series Rubber
Composed of one or more layers of two sides coated with glue, and also of rubber without fabric clip. According to the shape of the separation method membrane pressure method. According to the requirements of the production of different rubber, different fabric diaphragm. The properties of nitrile rubber and polysulfide rubber blends used in the diaphragm, the properties of rubber materials used in the canvas disc diaphragm and some silicone rubber, fluoro rubber and chloro rubber membranes developed in recent years are described as follows.
The operating temperature and pressure range of the diaphragm itself depends on the rubber, fabric and structure. The diaphragm can work at -50~100 ° c and 0.4~ 0.8mpa. Fluoro rubber and silicone rubber diaphragm can work at -80~232 ℃. Chlorol rubber diaphragm can work under pressure of 0.4~ 0.8mpa, with good air tightness, aging resistance, and the service life is equal to that of engine overhaul.
