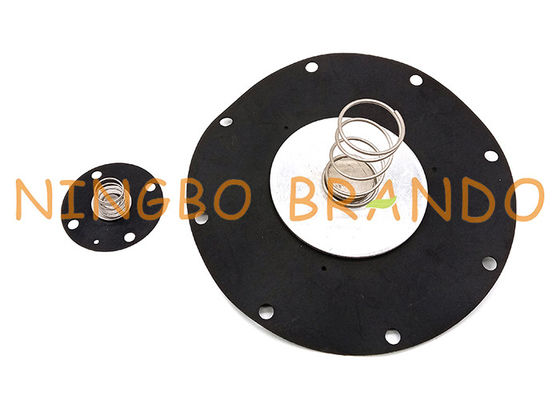

K7600 3'' Inch CA76 RCA76 T Serires Pulse Jet Valve Diaphragm

K7600 3'' Inch CA76 RCA76 T Serires Pulse Jet Valve Diaphragm

  • K7600 3'' Inch CA76 RCA76 T Serires Pulse Jet Valve Diaphragm
  • K7600 3'' Inch CA76 RCA76 T Serires Pulse Jet Valve Diaphragm
K7600 3'' Inch CA76 RCA76 T Serires Pulse Jet Valve Diaphragm
Product Details:
Place of Origin: China
Brand Name: OEM
Certification: ISO、CE
Model Number: G76
Payment & Shipping Terms:
Minimum Order Quantity: 3 pc
Price: negotiation
Packaging Details: also can be packed by color card and can be customized
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Material: NBR Size: 3 Inch
Color: Black Type: Goyen
Power: Pneumatic Temperature Of Media: -20~80℃
High Light:

K7600 Valve Diaphragm

,

3'' Inch Valve Diaphragm

,

Goyen Type K7600

K7600 3'' Inch CA76 RCA76 T Serires Pulse Jet Valve Diaphragm




Diaphragm K7600/K7601 are suitabled for the pulse valve of Goyen sizes, CA76T, RCA76T, CA76MM, RCA76MM. K7600 was made of Nitrile, K7601 was made of Viton. Both of the diaphragm's size are 3".
K7601 has excellent high temperature performance If you need a large quantity, we can give a big discount for you. Welcome your inquiry.The products we have many in store, it will be sent out ASAP if we have received the payments.
In order to ensure the quality and performance of the products, our company is very strict in selecting the materials and materials. According to the requirements of different customers, we can provide various types of diaphragm products with different materials and structures. The production equipment is perfect and the molds are complete. Professional technology and dedicated spirit is our customers to provide a solid guarantee of products.

Model Goyen CA76T pulse valve diaphragm G76
Center distance φ184.5
Application Dust System
Hole number for mounting 8
Working temperature -20℃--80℃
Working pressure 0.2Mpa-0.6Mpa
Working medium Clean Air
Diaphragm working life More than 1 million cycles
Name rubber diaphragm
Material VITON, NBR, HNBR, EPDM, FPM/FKM, SILICONE, CR



VITON Series Rubber

K7600 3'' Inch CA76 RCA76 T Serires Pulse Jet Valve Diaphragm 0
NBR Series Rubber
K7600 3'' Inch CA76 RCA76 T Serires Pulse Jet Valve Diaphragm 1

EPDM Series Rubber
K7600 3'' Inch CA76 RCA76 T Serires Pulse Jet Valve Diaphragm 2

All abouve Series Diaphragm can be Available,If you need other series,also can be available.

Advantages of Pulse Valve Diaphragm:
Pulse valve diaphragm with strong oil resistance, acid resistance, high temperature resistance, alkali resistance and other characteristics, can easily ensure the complete synchronous operation with other control components, control the pulse compressed air injection. Even in extremely harsh working environment, it can guarantee its normal work and long service life. At the ambient temperature of -20-80℃ and the operating pressure difference of 0.8mpa, the working life of the diaphragm is not lower than 1 million times.

Structure performance

Composed of one or more layers of two sides coated with glue, and also of rubber without fabric clip. According to the shape of the separation method membrane pressure method. According to the requirements of the production of different rubber, different fabric diaphragm. The properties of nitrile rubber and polysulfide rubber blends used in the diaphragm, the properties of rubber materials used in the canvas disc diaphragm and some silicone rubber, fluoro rubber and chloro rubber membranes developed in recent years are described as follows.



The operating temperature and pressure range of the diaphragm itself depends on the rubber, fabric and structure. The diaphragm can work at -50~100 ° c and 0.4~ 0.8mpa. Fluoro rubber and silicone rubber diaphragm can work at -80~232 ℃. Chlorol rubber diaphragm can work under pressure of 0.4~ 0.8mpa, with good air tightness, aging resistance, and the service life is equal to that of engine overhaul.



Thanks for watching,we will pay attention to your any question.
