K5004 M1638A K5005 M1639A 2'' CA/RCA50 2.5'' CA/RCA62 Diaphragm

K5004 M1638A K5005 M1639A 2'' CA/RCA50 2.5'' CA/RCA62 Diaphragm

The diaphragm is an important component in the pulse valve on the dust remover. The quality of the diaphragm determines the action of the pulse valve.

Technical requirements of diaphragm: as the diaphragm of pulse valve is a flexible mechanism that needs to be opened and closed frequently to control air circulation, and requires good flexibility, as well as the highest sealing ability, the material of the diaphragm of pulse valve is directly related to the service life and effect of the diaphragm of pulse valve. In other words, the quality of the diaphragm of pulse valve directly affects the pulse valve The working stability of the dust cleaning system of the bag type dust collector is directly related to the use cost of the dust removal equipment. Generally, the pulse valve diaphragm has the commitment of service life or action times. The use of the pulse valve diaphragm can directly reduce the use cost of the dust removal equipment.

The specifications of the diaphragm are complete and can also be customized. The diaphragm of pulse valve is a whole piece of rubber diaphragm installed with a rivet head to block the compressed air pipe or the outlet of the valve, a vent unloading hole and a bolt hole for fixing the support around, which is the key control part of the electromagnetic pulse valve.

Deference number:

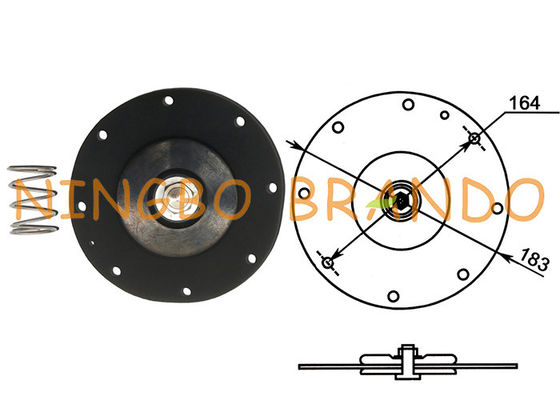

Dimension Diagram:

Detailed Images:

Youtube video of diaphragm videos:

Our Production:

Packing＆shipping

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
