| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | MHC2 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4-7 work days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Cylinder Type: | Air Gripper | Gripping Type: | Angular |
|---|---|---|---|
| Bore Size: | 10mm, 16mm, 20mm, 25mm | Action: | Double Acting, Single Acting |
| Fluid: | Air | Number Of Fingers: | 2 |
| Max Operating Frequency: | 180 C.p.m | Operating Pressure: | 0.1 To 0.6MPa (Double Acting), 0.25 To 0.6Mpa (Single Acting) |
| High Light: | 2 Finger Air Grippers,Angular Air Grippers,SMC MHC2 Series |
||

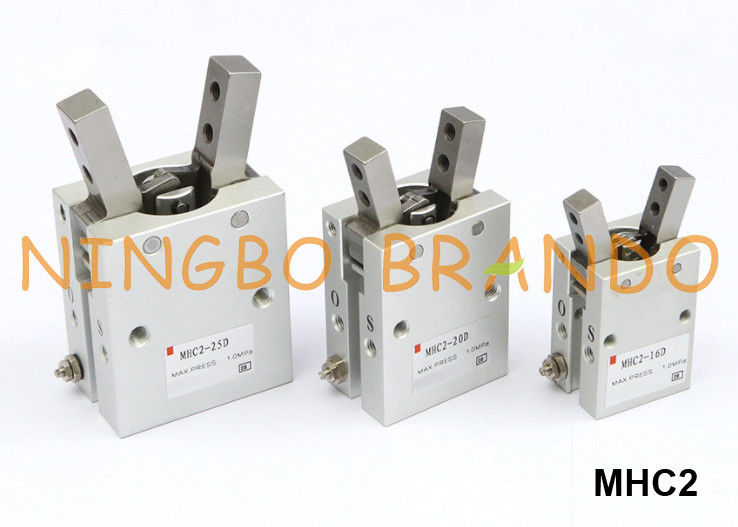

2 Finger Angular Pneumatic Air Gripper SMC Type MHC2 Series
SMC Type MHC gripper is ideal for use in applications requiring angular gripping. The opening angle ranges from 30 to -10 degrees. A double piston mechanism provides a large amount of gripping force, while maintaining a compact design. The MHC series has a built in speed adjustment and a recessed groove for auto switches.
The gripper is connected to the compressed air supply system. As the compressed air is introduced into the cylinder, it powers the piston rod. The piston rod is connected to the gripping fingers. As the air pressure moves the piston up and down, the fingers open or close in a parallel or angular manner. This mechanism can be used in pick-and-place operation or to change the orientation of the object.
Specifications of MHZ2 Series Air Grippers:
Models Number of MHZ2 Series Air Grippers:
Ordering Code of MHC2 Series Air Grippers:
Brando Supply Pneumatic Air Cylinders:
| Airtac Type Pneumatic Cylinder | Festo Type Pneumatic Cylinder | SMC Type Pneumatic Cylinder |
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
