Name: 0545 02.1-00/5802 Nass Type Solenoid Magnet Coil 113-030-0120
Brand: Brando
SKU: BB14542505
Rating: 4.9 (157 reviews)

Home Products Solenoid Valve Coil

0545 02.1-00/5802 Nass Type Solenoid Magnet Coil 113-030-0120

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	BB14542505

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	inner boxes,cartons,pallets
Delivery Time:	5-8 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Hole Size:	14.5mm	Height:	42.5mm
Width:	36.0mm	Voltage:	AC220V, AC110V, DC24V, DC12V
Power:	28VA, 20W, 14W	Connector:	DIN43650A
Insulation Class:	H	Enameled Wire Material:	Copper
Suitable Valve Series:	Air Compressor Auto Drain Valve
High Light:	0545 02.1-00/5802 Coil , Nass Type Coil , 113-030-0120 Solenoid Bobine

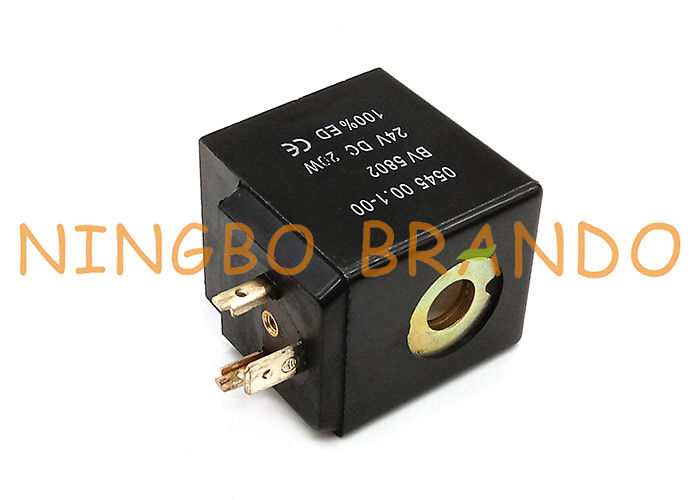

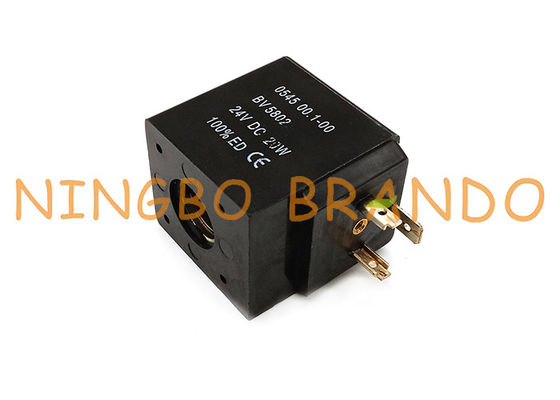

0545 02.1-00/5802 Nass Type Solenoid Magnet Coil 113-030-0120

Coils with DIN Connectors
Valve manufacturers often offer a DIN connector option on their coils. Instead of lead wires, the coil will have prongs or pins to accept a standard DIN connector. The coil is considered to have a male connection and the plug connecting to the coil is a female connector. Using a DIN connector provides many advantages: quick valve or coil exchange, excellent insulation properties, possible water tightness etc.

The connector standard used for solenoid valves is DIN 43650 . The DIN 43650 series consists of five connectors, which have the following pin spacing:

DIN 43650 Form A - 18 mm
Industrial Form B - 11 mm
DIN 43650 Form B - 10 mm
DIN 43650 Form C - 8 mm
Micro-Mini - 9.4 mm
DIN connectors can be purchased as shells to be wired by the installer or they may be factory molded with a cable assembly. They have usually contain three or four terminals or pins. Some DIN connectors are available with LED indicators which indicate the power state of the coil for diagnostics purposes.

Dimension of BB14542505 Solenoid Valve Coil :

Technical Data:

Order Number	Voltage	Frequency	Power
Order Number	Voltage	Frequency	[W]	[VA]
113-030-0123	24V DC	-	4,1
113-030-0144	24V AC	50		8,8
113-030-0144	24V AC	60		7,6
113-030-0128	220V AC	50		9,0
113-030-0128	240V AC	60		9.2
113-030-0142	230V AC	50		8.8
113-030-0142	230V AC	60		7.6
113-030-0121	220V AC	50		14,0
113-030-0124	24V DC	-	7,9
113-030-0135	24V AC	50		14,0
113-030-0135	24V AC	60		12,0
113-030-0279	110V AC	50		13,9
113-030-0279	110V AC	60		12,2
113-030-0125	24V DC	-	11,9
113-030-0129	24V AC	50		21,0
113-030-0129	24V AC	60		18,0
113-030-0126	110V AC	50		21,5
113-030-0141	230V AC	50		22,0
113-030-0141	230V AC	60		19,0
113-030-0120	12V DC	-	17,5
113-030-0127	24V AC	50		25,0
113-030-0132	24V DC	-	18,5
113-030-0120	36V AC	50		25,0
113-030-0137	110V AC	50		27,5
113-030-0140	110V AC	60		26,5
113-030-0137	120V AC	60		28,0
113-030-0133	220V AC	50		25,5
113-030-0122	220V AC	50		22,0
113-030-0138	230V AC	50		25,5
113-030-0133	240V AC	60		25,0
113-030-0138	240V AC	60		27,0

Solenoid Coil Production Line:

0545 02.1-00/5802 Nass Type Solenoid Magnet Coil 113-030-0120 1

Product Features:
1. Using high quality wire which has UL approved; 2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
