| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | CXSWM, CXSWL |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4-7 work days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Cylinder Type: | Dual Rod Cylinder | Bore Size (mm): | 6, 10, 16, 20, 25, 32 |
|---|---|---|---|
| Standard Stroke (mm): | 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200 | Max Operating Pressure: | 0.7 Mpa |
| Cushion: | Rubber Bumper On Both Ends | Port Size: | M5x0.8, 1/8'' |
| Bearing Type: | Slide Bearing, Ball Bushing Bearing | Piston Speed: | 50 To 500mm/s |
| High Light: | Dual Rod Air Cylinders,Guide Rod Air Cylinders,SMC CXSWM6-30 |
||

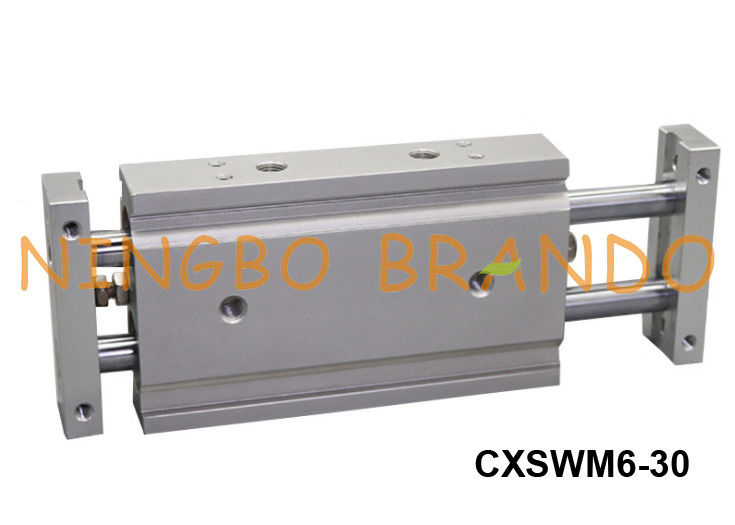

Dual Guide Rod Air Cylinders Pneumatic SMC Type CXSWM6-30
SMC Type CXSW Series Pneumatic Cylinder is a dual piston double rod cylinder with non-rotating accuracy ± 0.1°. The CXSWL high precision ball bushing type allows for smooth operation that ensures stable travel resistance. The CXSWM slide bearing type provides lateral stability protecting it from side load impacts. Series CXSW is available in six bore sizes (6mm, 10mm, 15mm, 20mm, 25mm, 32mm) and stroke lengths up to 200mm. This series is very compact and has a very accurate non-rotating specification. It is suited for accurate pick-and-place applications or light duty material handling. The CXSW can be used with either reed or solid state switches.
Specifications of CXSW Series Pneumatic Cylinder:
Stroke of CXSW Series Pneumatic Cylinder:
Ordering Code of CXSW Series Pneumatic Cylinder:
Theoretical Output of CXSW Series Pneumatic Cylinder:
Brando Supply Pneumatic Air Cylinders:
| Airtac Type Pneumatic Cylinder | Festo Type Pneumatic Cylinder | SMC Type Pneumatic Cylinder |
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Brandon
Tel: +8613454729544
