| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | CXSM |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4-7 work days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Bore Size (mm): | 6, 10, 16, 20, 25, 32 | Standard Stroke (mm): | 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75, 80, 90, 100 |
|---|---|---|---|
| Max Operating Pressure: | 0.7 Mpa | Cushion: | Rubber Bumper |
| Port Size: | M5x0.8, 1/8'' | Bearing Type: | Slide Bearing |
| High Light: | Dual Rod Cylinder SMC,Pneumatic Cylinder 75mm Stroke,SMC CXSM25-75 |
||

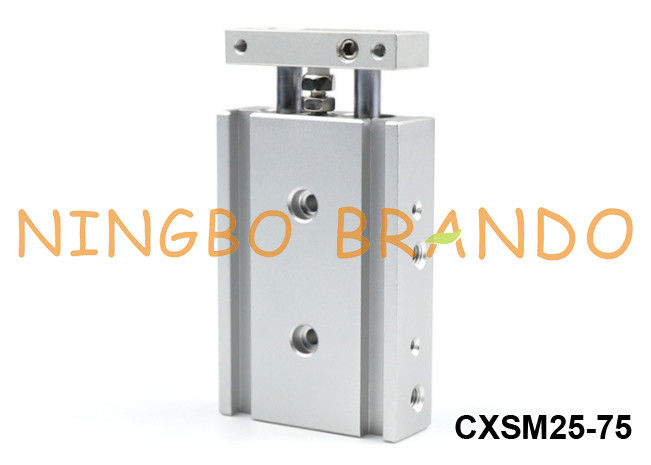

Dual Rod Pneumatic Air Cylinder SMC Type CXSM25-75 75mm Stroke
SMC Type CXS Series Pneumatic Air Cylinder is a dual piston actuator with non-rotating accuracy ± 0.1°. CXS Series is available in six bore sizes and stroke lengths up to 100mm. This series is very compact and has a very accurate non-rotating specification. It is suited for accurate pick-and-place applications or light duty material handling. The CXS can be used with either reed or solid state switches. The CXSL high precision ball bushing type allows for smooth operation that ensures stable travel resistance. The CXSM slide bearing type provides lateral stability protecting it from side load impacts.
Specifications of CXS Series Pneumatic Cylinder:
Stroke of CXS Series Pneumatic Cylinder:
Ordering Code of CXS Series Pneumatic Cylinder:
Theoretical Output of CXS Series Pneumatic Cylinder:
Brando Supply Pneumatic Air Cylinders:
| Airtac Type Pneumatic Cylinder | Festo Type Pneumatic Cylinder | SMC Type Pneumatic Cylinder |
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
