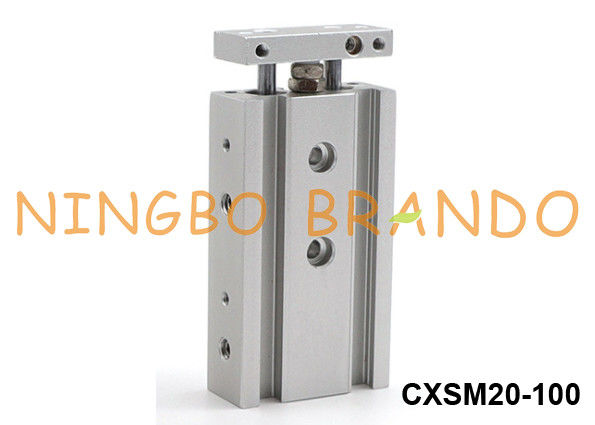

SMC Type CXSM20-100 Dual Rod Pneumatic Air Cylinder 100mm Stroke

SMC Type CXSM20-100 Dual Rod Pneumatic Air Cylinder 100mm Stroke

  • SMC Type CXSM20-100 Dual Rod Pneumatic Air Cylinder 100mm Stroke
SMC Type CXSM20-100 Dual Rod Pneumatic Air Cylinder 100mm Stroke
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: CXSM
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-7 work days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Bore Size (mm): 6, 10, 16, 20, 25, 32 Standard Stroke (mm): 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75, 80, 90, 100
Max Operating Pressure: 0.7 Mpa Cushion: Rubber Bumper
Port Size: M5x0.8, 1/8'' Bearing Type: Slide Bearing
Highlight:

Dual Rod Pneumatic Cylinder

,

Pneumatic Cylinder 100mm Stroke

,

SMC CXSM20-100

SMC Type CXSM20-100 Dual Rod Pneumatic Air Cylinder 100mm Stroke



Pneumatic dual rod cylinders of the CXS series are precision linear actuators.


Available in CXSM versions with slide bearings for high stress levels and CXSL versions with ball bearings for high translation speeds, they are available in 10, 16, 20, 25, 32 mm bores and stokes of up to 200 mm.


The compact and light CXS dual rod cylinders have special design characteristics which provide anti-rotation of the load. The high structural stiffness of the set, the force which is doubled with respected to the nominal diameter, the possibility of adjusting the return stroke and "T" slot fitting magnetic sensors plus a wide range of fixing solutions are just some of the features that make employment of such cylinders in a wide range of industrial automation.



Specifications of CXS Series Pneumatic Cylinder:

SMC Type CXSM20-100 Dual Rod Pneumatic Air Cylinder 100mm Stroke 0



Stroke of CXS Series Pneumatic Cylinder:

SMC Type CXSM20-100 Dual Rod Pneumatic Air Cylinder 100mm Stroke 1


Ordering Code of CXS Series Pneumatic Cylinder:
SMC Type CXSM20-100 Dual Rod Pneumatic Air Cylinder 100mm Stroke 2



Theoretical Output of CXS Series Pneumatic Cylinder:

SMC Type CXSM20-100 Dual Rod Pneumatic Air Cylinder 100mm Stroke 3



Brando Supply Pneumatic Air Cylinders:



Airtac Type Pneumatic Cylinder Festo Type Pneumatic Cylinder SMC Type Pneumatic Cylinder
SMC Type CXSM20-100 Dual Rod Pneumatic Air Cylinder 100mm Stroke 4 SMC Type CXSM20-100 Dual Rod Pneumatic Air Cylinder 100mm Stroke 5 SMC Type CXSM20-100 Dual Rod Pneumatic Air Cylinder 100mm Stroke 6
