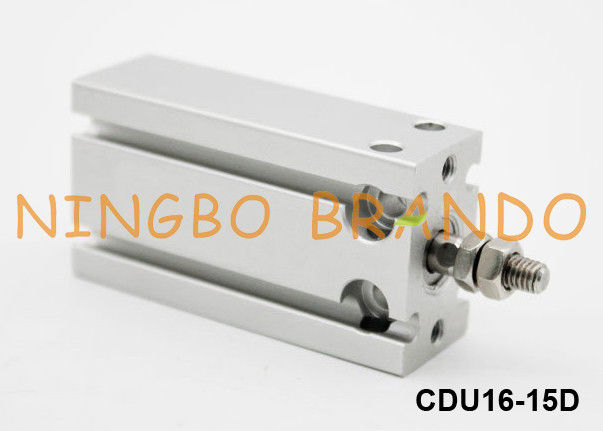

SMC Type CDU16-15D Free Mount Pneumatic Cylinder Double Acting Single Rod

SMC Type CDU16-15D Free Mount Pneumatic Cylinder Double Acting Single Rod

  • SMC Type CDU16-15D Free Mount Pneumatic Cylinder Double Acting Single Rod
SMC Type CDU16-15D Free Mount Pneumatic Cylinder Double Acting Single Rod
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: CDU
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-7 work days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Bore Size (mm): 6, 10, 16, 20, 25, 32 Standard Stroke (mm): 5, 10, 15, 20, 25, 30, 40, 50
Acting Type: Double Acting End Of Piston Rod: Male Thread
Piston Speed: 50 To 7500mm/s Max Operating Pressure: 0.7 Mpa
Cushion: Rubber Bumper Port Thread: M5x0.8
Highlight:

SMC Free Mount Cylinder

,

SMC Double Acting Cylinder

,

SMC CDU16-15D

SMC Type CDU16-15D Free Mount Pneumatic Cylinder Double Acting Single Rod



The series CU free mount cylinder saves space and allows direct and precise mounting. It is available in 6mm to 32mm bore sizes with stroke lengths up to 50mm. Options include auto switch capabilities, free mount choices, recessed switch mounting grooves, non-rotating rod, double rod, single and double acting, and rubber bumpers standard.



* Bore sizes from 6mm to 32mm available
* Stroke lengths up to 50mm
* Any surfaces can be used for mounting
* Space saving
* Auto switch capable



Specifications of C(D)U Series Pneumatic Cylinder:

SMC Type CDU16-15D Free Mount Pneumatic Cylinder Double Acting Single Rod 0



Stroke of C(D)U Series Pneumatic Cylinder:

SMC Type CDU16-15D Free Mount Pneumatic Cylinder Double Acting Single Rod 1


Ordering Code of C(D)U Series Pneumatic Cylinder:
SMC Type CDU16-15D Free Mount Pneumatic Cylinder Double Acting Single Rod 2



Theoretical Output of C(D)U Series Pneumatic Cylinder:

SMC Type CDU16-15D Free Mount Pneumatic Cylinder Double Acting Single Rod 3



Brando Supply Pneumatic Air Cylinders:



Airtac Type Pneumatic Cylinder Festo Type Pneumatic Cylinder SMC Type Pneumatic Cylinder
SMC Type CDU16-15D Free Mount Pneumatic Cylinder Double Acting Single Rod 4 SMC Type CDU16-15D Free Mount Pneumatic Cylinder Double Acting Single Rod 5 SMC Type CDU16-15D Free Mount Pneumatic Cylinder Double Acting Single Rod 6
