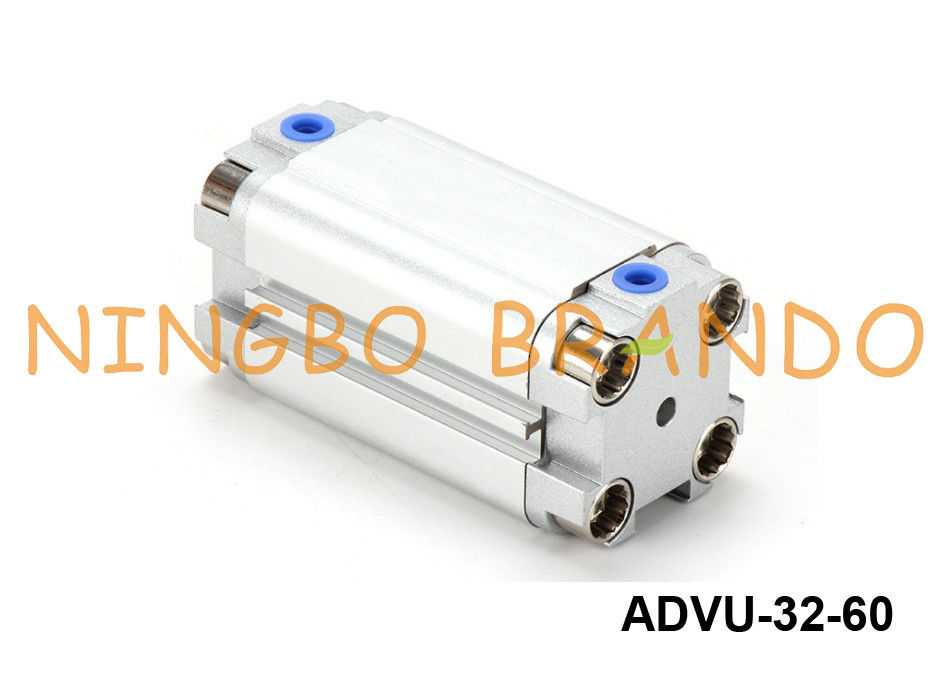

Name: Pneumatic Compact Cylinder Double Acting Festo Type ADVU-32-60-P-A
Brand: BRANDO
SKU: ADVU
Rating: 4.5 (153 reviews)

Home Products Pneumatic Air Cylinders

Pneumatic Compact Cylinder Double Acting Festo Type ADVU-32-60-P-A

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	ADVU

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Inner Box, Carton, Pallet
Delivery Time:	4-7 work days
Payment Terms:	L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Product Series:	Compact Cylinder	Bore Size (mm):	12, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125
Standard Stroke (mm):	5, 10, 15, 20, 25, 30, 40, 50, 60, 80	Acting Type:	Double Acting
End Of Piston Rod:	Female Thread, Male Thread	Thread Sizes:	M3, M4, M5, M6, M8, M10, M12, M16, M10x1.25, M12x1.25, M16x1.5, M20x1.5, M27x2
Operating Medium:	Compressed Air
High Light:	Festo Pneumatic Compact Cylinder , Compact Pneumatic Air Cylinder , Festo ADVU-32-60-P-A

Pneumatic Compact Cylinder Double Acting Festo Type ADVU-32-60-P-A

BRANDO offers a wide range of compact pneumatic cylinders from leading manufacturers. Our compact pneumatic cylinders are available in a wide selection of sizes, strokes and diameters, for unrivalled reliability and performance.

Features of ADVU series Pneumatic Compact Cylinder:
1. Single-acting or double-acting cylinder with a wide range of mounting options.
2. 50% less installation space than comparable ISO cylinders to ISO 15552
3. Wide range of variants for customized applications
4. Piston rod with internal or external thread
5. Magnetic piston for position sensing

Technical Data of ADVU Series Compact Pneumatic Cylinder:

Pneumatic Compact Cylinder Double Acting Festo Type ADVU-32-60-P-A 0

Pneumatic Compact Cylinder Double Acting Festo Type ADVU-32-60-P-A 1

Stroke of ADVU Series Compact Pneumatic Cylinder:

Bore (mm)		Standard Stroke (mm)	Max. Std Stroke (mm)
ADVU	12	5 10 15 20 25 30 40	1 ~ 200
	16	5 10 15 20 25 30 40	1 ~ 200
	20	5 10 15 20 25 30 40 50	1 ~ 200
	25	5 10 15 20 25 30 40 50	1 ~ 200
	32	5 10 15 20 25 30 40 50 60 80	1 ~ 300
	40	5 10 15 20 25 30 40 50 60 80	1 ~ 300
	50	10 15 20 25 30 40 50 60 80	1 ~ 300
	63	10 15 20 25 30 40 50 60 80	1 ~ 300
	80	10 15 20 25 30 40 50 60 80	1 ~ 400
	100		1 ~ 400
	125		1 ~ 400
ADVULQ	12	5 10 15 20 25 30 40	1 ~ 200
	16	5 10 15 20 25 30 40	1 ~ 200
	20	5 10 15 20 25 30 40 50	1 ~ 200
	25	5 10 15 20 25 30 40 50	1 ~ 200
	32	5 10 15 20 25 30 40 50 60 80	1 ~ 300
	40	5 10 15 20 25 30 40 50 60 80	1 ~ 300
	50	10 15 20 25 30 40 50 60 80	1 ~ 300
	63	10 15 20 25 30 40 50 60 80	1 ~ 300
	80	10 15 20 25 30 40 50 60 80	1 ~ 400
	100		1 ~ 400
	125		1 ~ 400

Ordering Code of ADVU Series Compact Pneumatic Cylinder:

Pneumatic Compact Cylinder Double Acting Festo Type ADVU-32-60-P-A 2
