| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | DSNU |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4-7 work days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Product Series: | Piston Rod Cylinder | Bore Size (mm): | 8, 10, 12, 16, 20, 25, 32, 40, 50, 63 |
|---|---|---|---|
| Standard Stroke (mm): | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 200, 250, 300, 350, 400, 450, 500 | Mode Of Operation: | Double Acting |
| Operating Pressure Range: | 0.1 To 1.0 MPa | Conforms To Standard: | ISO 6432 |
| Highlight: | Round Body Pneumatic Cylinder,Pneumatic Piston Air Cylinder,Festo DSNU-25-40-PPV-A |
||

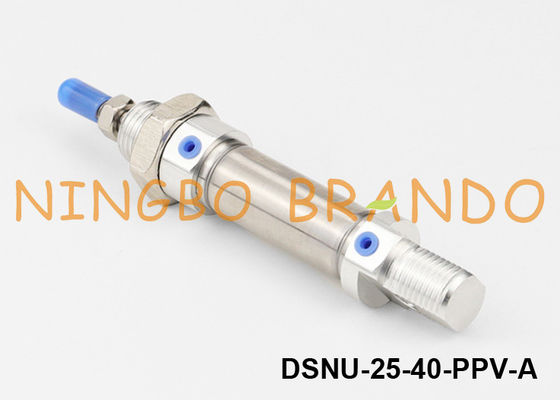

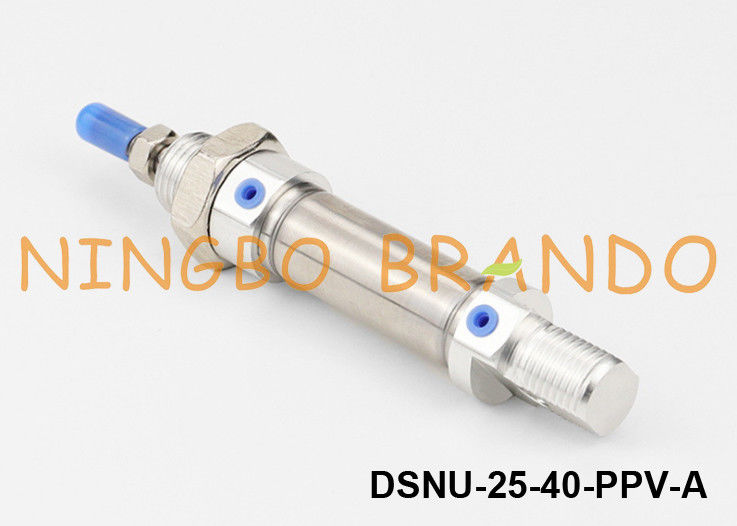

Round Body Pneumatic Piston Air Cylinder Festo Type DSNU-25-40-PPV-A
Pneumatic air cylinders are either single-acting (spring return or spring extent) or double-acting. Single-acting cylinders require compressed to either extend or return the piston and the spring force is in the opposite direction. In a double-acting cylinder, compressed air is used for both the extension and retraction of the rod depending on where the high pressure is.Double acting cylinders are most commonly used. With multiple different configurations of rod diameter, stroke length, force in/out, and pressure ranges there is a pneumatic cylinder for almost any application requiring linear motion. We also have options with a magnetic piston for position feedback capabilities as well as adjustable damping for added control of cushioning.
BRANDO’s wide range of pneumatic cylinders allow you to find a product to meet almost any application requirements and we ensure they are made from high quality material, tested, calibrated, and come to you at a competitive price.
Specifications of DSNU Series Pneumatic Cylinder:
| Bore Size (mm) | 8 | 10 | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | ||
| Acting Type | DSNU | Double Acting | ||||||||||
| ESNU | Single Acting | |||||||||||
| Port Size | M5 | G1/8'' | G1/4'' | G3/8'' | ||||||||
| Piston Rod thread | M4 | M6 | M8 | M10x1.25 | M12x1.25 | M16x1.25 | ||||||
| Cushioning Type | - | Adjustable Cushion | ||||||||||
| Cushioning Length (PPV) | - | 12mm | 15mm | 17mm | 14mm | 18mm | 20mm | 21mm | ||||
| Fluid | Air (to be filtered by 40μm filter element) | |||||||||||
| Operating Pressure Range | 0.1 to 1.0 MPa | |||||||||||
| Temprature (℃) | -20 to +70 | |||||||||||
Stroke of DSNU Series Pneumatic Cylinder:
| Bore Size (mm) | Standard Stroke (mm) | Max. Std Stroke | Stroke Tolerance | |
| Double Acting | 8 |
10, 25, 40, 50, 80, 100 |
100 | +1 |
| 10 |
10, 25, 40, 50, 80, 100 |
100 | +1 | |
| 12 |
10, 25, 40, 50, 80, 100, 125, 150, 160, 200 |
200 | +1.5 | |
|
Double Acting, Adjustable Cushion |
16 |
10, 25, 40, 50, 80, 100, 125, 150, 160, 200 |
200 | +1.5 |
| 20 | 10, 25, 40, 50, 80, 100, 125, 150, 160, 200, 250, 300 | 300 | +1.5 | |
| 25 |
10, 25, 40, 50, 80, 100, 125, 150, 160, 200, 250, 300, 350, 400, 450, 500 |
500 | +2 | |
| 32 | 500 | +2 | ||
| 40 | 500 | +2 | ||
| 50 | 500 | +2 | ||
| 63 | 500 | +2 | ||
| Single Acting | 8 | 10, 15, 20, 25, 30, 40, 50 | 50 | +1 |
| 10 | 50 | +1 | ||
| 12 | 50 | +1 | ||
| 16 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100 | 100 | +1 | |
| 20 | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150 | 150 | +1 | |
| 25 | 150 | +1 | ||
| 32 | 150 | +1 | ||
| 40 | 150 | +1 | ||
| 50 | 150 | +1 | ||
| 63 | 150 | +1 | ||
Ordering Code of DSNU Series Pneumatic Cylinder:
