| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | DNC |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4-7 work days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Product Series: | Piston Rod Cylinder | Bore Size (mm): | 32, 40, 50, 63, 80, 100, 125 |
|---|---|---|---|
| Standard Stroke (mm): | 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 | Acting Type: | Double Acting |
| Operating Pressure Range: | 0.15 To 1.0 MPa | Proof Pressure: | 1.5 MPa |
| Highlight: | Tie Rod Cylinder Pneumatic,Festo Pneumatic Cylinders,Festo DNC-32-40-PPV-A |
||

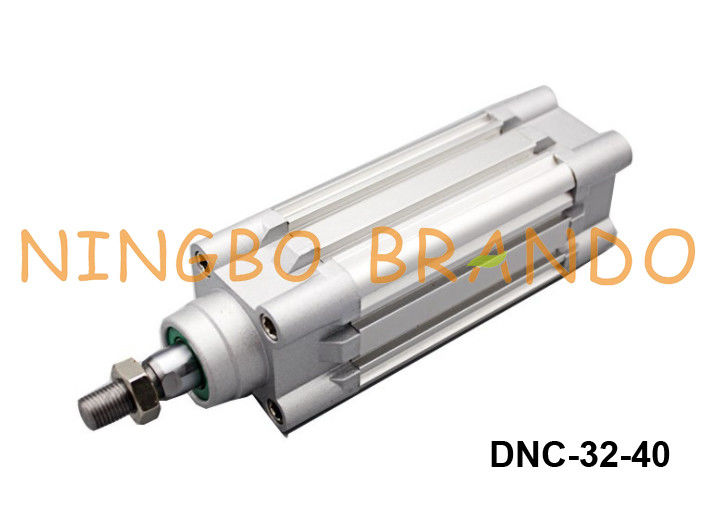

Festo Type DNC-32-40-PPV-A Tie Rod Pneumatic Air Cylinder ISO 15552
Common Pneumatic Cylinder Types:
Single-acting cylinders (SAC) use pressure that forms from compacted air. In majority of cases, the extension SAC cylinders have is very limited due to the amount of space the compacted spring takes.
Double-acting cylinders (DAC) use air pressure in order to retract strokes and move in range. Two parts make up this cylinder, both of which let the air in. One is for outstroke and the other, in-stroke.
Telescoping cylinders, also known as telescopic cylinders come in single-acting and double-acting modes. Their designs allow for much longer strokes and tend to be reserved for uses where the piston has to face minimal side loading.
Specifications of DNC Series Pneumatic Cylinder:
| Bore Size (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | ||
| Acting Type | Double Acting | ||||||||
| Fluid | Air (to be filtered by 40μm filter element) | ||||||||
| Operating Pressure Range | 0.15 to 1.0 MPa (1.5 to 10.0 bar) (22 to 145 psi) | ||||||||
| Proof Pressure | 1.5 MPa (15 bar) (215 psi) | ||||||||
| Temprature (℃) | -20 to +80 | ||||||||
| Speed Range (mm/s) | 30 to 800 | ||||||||
| Cushion Type | Variable cushion | ||||||||
| Port Size | 1/8'' | 1/4'' | 3/8'' | 1/2'' | |||||
Stroke of DNC Series Pneumatic Cylinder:
| Bore Size (mm) | Standard Stroke (mm) | Max. Std Stroke | Max. Stroke |
| 32 |
25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 |
1000 | 1800 |
| 40 |
25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800 |
1200 | 1800 |
| 50 |
25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 |
1200 | 1800 |
| 63 | 1500 | 1800 | |
| 80 | 1500 | 1800 | |
| 100 | 1500 | 1800 | |
| 125 | 1500 | 1800 |
Ordering Code of DNC Series Pneumatic Cylinder:
