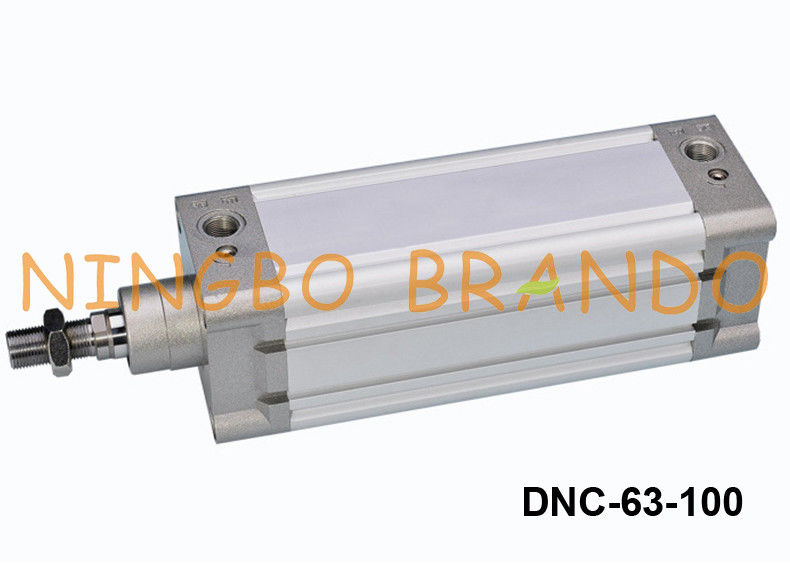

Festo Type DNC-63-100-PPV-A Tie Rod Air Cylinder Double Acting

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	DNC

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Inner Box, Carton, Pallet
Delivery Time:	4-7 work days
Payment Terms:	L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Product Series:	Piston Rod Cylinder	Bore Size (mm):	32, 40, 50, 63, 80, 100, 125
Standard Stroke (mm):	25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000	Acting Type:	Double Acting
Operating Pressure Range:	0.15 To 1.0 MPa	Proof Pressure:	1.5 MPa
High Light:	Air Cylinder Double Acting , Tie Rod Air Cylinder , Festo DNC-63-100-PPV-A

Festo Type DNC-63-100-PPV-A Tie Rod Air Cylinder Double Acting

Sometimes referred to as pneumatic cylinders or pneumatic actuators, air cylinders are used in many industrial applications that require linear motion. Cost-effective and labor-saving, air cylinders convert energy into motion using compressed air. A host of air cylinders are available, including single-acting and long-stroke pneumatic cylinders, air actuators, double-acting pneumatic cylinders, pneumatic pistons and rodless cylinders. Review the product specifications to ensure that you’ve got the right air cylinder for the job. Also shop for cylinder mounting hardware, solenoid air control valves and manual air control valves.

Specifications of DNC Series Pneumatic Cylinder:

Bore Size (mm)	32	40	50	63	80	100	125
Acting Type	Double Acting
Fluid	Air (to be filtered by 40μm filter element)
Operating Pressure Range	0.15 to 1.0 MPa (1.5 to 10.0 bar) (22 to 145 psi)
Proof Pressure	1.5 MPa (15 bar) (215 psi)
Temprature (℃)	-20 to +80
Speed Range (mm/s)	30 to 800
Cushion Type	Variable cushion
Port Size	1/8''	1/4''		3/8''		1/2''

Stroke of DNC Series Pneumatic Cylinder:

Bore Size (mm)	Standard Stroke (mm)	Max. Std Stroke	Max. Stroke
32	25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500	1000	1800
40	25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800	1200	1800
50	25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000	1200	1800
63		1500	1800
80		1500	1800
100		1500	1800
125		1500	1800

Ordering Code of DNC Series Pneumatic Cylinder:

Festo Type DNC-63-100-PPV-A Tie Rod Air Cylinder Double Acting 0
