Name: 1-1/2'' 1.5'' Inch Through Threaded Remote Pilot Pulse Jet Valve
Brand: Brando
SKU: DTA-ZT-40S
Rating: 4.7 (182 reviews)

Home Products Pulse Jet Valve

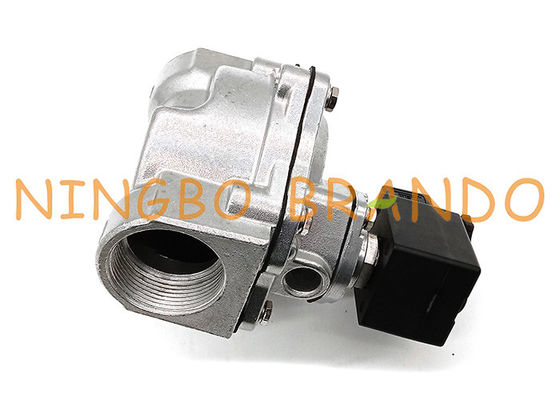

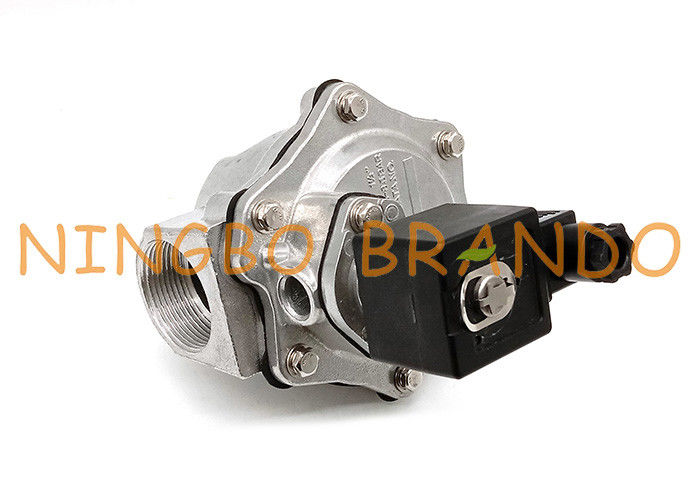

1-1/2'' 1.5'' Inch Through Threaded Remote Pilot Pulse Jet Valve

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	DTA-ZT-40S

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	inner boxes,cartons,pallets
Delivery Time:	7 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Type:	Straight Through Diaphragm Valve	Power:	Solenoid
Media:	Air	Port Size:	1-1/2'' 1.5'' Inch
Structure:	Diaphragm	Body Material:	Aluminum Alloy
Diaphragm Material:	NBR(Common), FKM(Available)	Number Of Diaphragm:	1
Pressure:	0.1 To 0.8MPa	Temperature:	-25 To +80℃
High Light:	1.5'' Inch Pulse Jet Valve , Through Threaded Pulse Jet Valve , Straight Through Remote Pilot

1-1/2'' 1.5'' Inch Through Threaded Remote Pilot Pulse Jet Valve

Quick Detail:
* Valve surface embalmed,non-shedding coat
* DN20mm~DN75mm
* Right angle valve body or in line valve body
* Special stainless steel piston/Diaphragm
* High quality TPE piston/Diaphragm,long service life
* Wide range of working temperature
* Seal Material NBR standard
* Outstanding airproof performance
* With excellent flow liquidity
* High flow rate CV,heavy duty
* Fast respond,low noise,low consumption
* Easy and convenient for maintenance
* Stable design,long serive life

Main Dimension:

1-1/2'' 1.5'' Inch Through Threaded Remote Pilot Pulse Jet Valve 0

353 Series Pulse Jet Valve For Dust Collector System:

Right Angle Valve	3/4''	1''	1 1/2''	2''	2 1/2''
	SCG353A043	SCG353A044	SCG353A047	SCG353A050	SCG353A051
Submerged Valve	3''
	SCEX353.060
Remote Pilot Valve	3/4''		1''	1 1/2''
	G353A041		G353A042	G353A045

CA/RCA Series Pulse Jet Valve:

Thread Valve	1/2''	3/4''	1''	1.5''	1.5''	2''	2.5''	3''
	CA15T	CA20T	CA25T	CA35T (Single Diaphragm)	CA45T (Double Diaphragm)	CA50T	CA62T	CA76T
Dresser Nut Valve	1''				1.5''
	CA25DD				CA45DD
Flanged Valve	1.5'' Inlet				2'' Inlet
	CA25FS				CA45FS
Immersion Valve	φ60 Outlet		φ75 Outlet		φ89 Outlet		φ86 Outlet
	CA50MM		CA62MM		CA76MM		CA89MM
Remote Pilot Valve	1/8''		1''		1.5''		2''
	RCA3D2		RCA25DD		RCA45T		RCA50T

DMF Series Pulse Jet Valve:

Thread Valve	3/4''	1''	1.5''	2''	2.5''	3''	4''
Thread Valve	DMF-Z-20	DMF-Z-25	DMF-Z-40S	DMF-Z-50S	DMF-Z-62S	DMF-Z-76S	DMF-Z-102S
Quick Mount Valve	3/4''	Inlet φ27	1''		1.5''
Quick Mount Valve	DMF-ZM-20	DMF-ZL-B	DMF-ZM-25		DMF-ZM-40S
Flange Valve	1''			1.5''
Flange Valve	DMF-ZF-25			DMF-ZF-40S
Embedded Valve	1''	1.5''	Outlet φ62mm	Outlet φ75	Outlet φ89	Outlet φ114	Outlet φ102
Embedded Valve	DMF-Y-25	DMF-Y-40S	DMF-Y-50S	DMF-Y-62S	DMF-Y-76S	DMF-Y-102S	DMF-Y-102SA
