Name: Airtac Type Compact Pneumatic Cylinders SDA20X15 20mm Bore 15mm Stroke
Brand: BRANDO
SKU: SDA
Rating: 4.7 (106 reviews)

Home Products Pneumatic Air Cylinders

Airtac Type Compact Pneumatic Cylinders SDA20X15 20mm Bore 15mm Stroke

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	SDA

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Inner Box, Carton, Pallet
Delivery Time:	4-7 work days
Payment Terms:	L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Product Series:	SDA Compact Cylinder	Bore Size (mm):	12, 16, 20, 25, 32, 40, 50, 63, 80, 100
Standard Stroke (mm):	5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75, 80, 90, 100, 110, 120, 130	Acting Type:	Double Acting, Single Acting_ Push Type, Single Acting_Pull Type
Operating Pressure Range:	Double Acting: 0.15 To 1.0 MPa, Single Acting: 0.2 To 1.0 MPa	Proof Pressure:	1.5 MPa
High Light:	Airtac Compact Pneumatic Cylinders , Pneumatic Cylinder 20mm Bore 15mm Stroke , Airtac SDA20X15

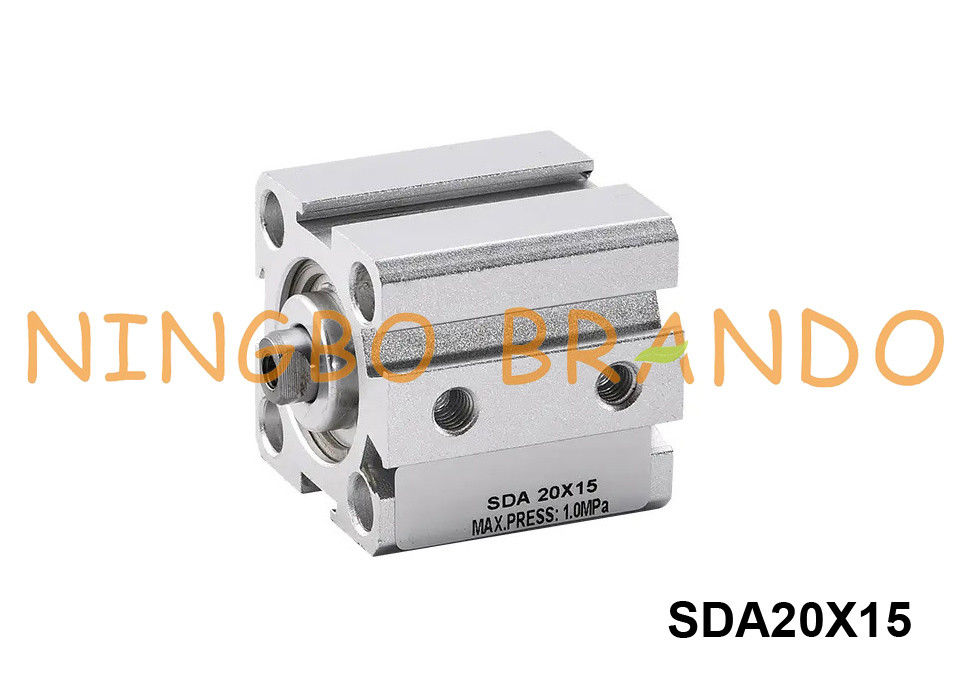

Airtac Type Compact Pneumatic Cylinders SDA20X15 20mm Bore 15mm Stroke

BRANDO’s compact pneumatic cylinders are available in double acting, double rod, single acting spring return, and single acting spring extended models. Universally compatible, they are lightweight, small in size, and provide a reliable, long cycle life. Combined with BRANDO’s long-standing history of quality products, outstanding service, and fast delivery, these cylinders provide the ideal solution for a wide range of pneumatic actuation needs at a great value.

Specifications of SDA Series Pneumatic Cylinder:

Bore Size (mm)

100

Acting Type

Double Acting

Single Acting_ Push Type, Single Acting_Pull Type

Fluid

Air (to be filtered by 40μm filter element)

Operating Pressure Range

Double Acting

0.15 to 1.0 MPa (1.5 to 10.0 bar) (22 to 145 psi)

Single Acting

0.2 to 1.0 MPa (2.0 to 10.0 bar) (28 to 145 psi)

Proof Pressure

1.5 MPa (15 bar) (215 psi)

Temprature (℃)

-20 to +70

Speed Range (mm/s)

Double Acting: 30 to 500, Single Acting: 50 to 500

Cushion Type

Bumper

Port Size

M5 x 0.8

1/8''

1/4''

3/8''

Stroke of SDA Series Pneumatic Cylinder:

Airtac Type Compact Pneumatic Cylinders SDA20X15 20mm Bore 15mm Stroke 0

Symbol of SDA Series Pneumatic Cylinder:

Ordering Code of SDA Series Pneumatic Cylinder:
Airtac Type Compact Pneumatic Cylinders SDA20X15 20mm Bore 15mm Stroke 2

Criteria for selection: Cylinder thrust:

Installation & Usage:

1. When load changes in the wonk, the cylinder wih abundant output capacity shall be ed.

2. Relative cylinder wth high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.

3. Necessasy protection measure shall be taken in the evironment with higher humidity. much dust or water drops, oil dust and welding dregs.

4. Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.

5. The medium used by cyinder shall be fitered to 40μm or below.

6. As both of the front cover and piston of the cylinder are short. typically too large stroke can not be ed.

7. Anti-freezing measure shall be adopted under low temperature environment prevent moisture freezing.

8. The cylinder shall avoid the inluence of side load in operation to maintain the normal work of cylinder and extend the service life.

9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports. The front and back cover can not be dismantled, which shall be especially noticed.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
