| Product Series: | SDA Compact Cylinder | Bore Size (mm): | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 |
|---|---|---|---|
| Standard Stroke (mm): | 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75, 80, 90, 100, 110, 120, 130 | Acting Type: | Double Acting, Single Acting_ Push Type, Single Acting_Pull Type |
| Operating Pressure Range: | Double Acting: 0.15 To 1.0 MPa, Single Acting: 0.2 To 1.0 MPa | Proof Pressure: | 1.5 MPa |
| High Light: | Airtac Compact Air Cylinders,Pneumatic Cylinder 20mm Bore 70mm Stroke,Airtac SDA20X70 |
||

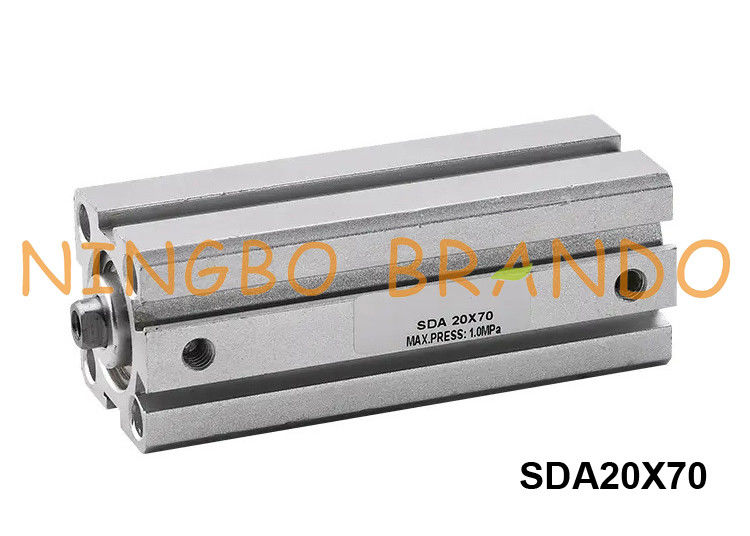

Airtac Type Compact Air Cylinders SDA20X70 20mm Bore 70mm Stroke
Product features of SDA Series Compact Pneumatic Cylinder:
1. Riveted structure is adopted to connect the cylinder body and back cover, and piston and piston rod to make it compact and reliable.
2. The inner diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability.
3. The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of grease reservation.
4. Compact structure can effectively save installation space.
5. There are magnetic switch slots around the cylinder body, which is convenient to install sensor switch.
6. Mounting accessories with various specification are optional.
Airtac type SDA series Compact Cylinders are available in a large variety of configurations. As well as the standard double acting, and double rod end models with back to back tandem versions of the double acting types are available. A stroke adjustable double acting version is included in the SDA series. Single acting spring return, and spring extend versions complete the available configurations. Bore sizes range from 12mm to 100mm in double acting.
Specifications of SDA Series Pneumatic Cylinder:
| Bore Size (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | ||
| Acting Type | Double Acting | |||||||||||
| Single Acting_ Push Type, Single Acting_Pull Type | - | |||||||||||
| Fluid | Air (to be filtered by 40μm filter element) | |||||||||||
| Operating Pressure Range | Double Acting | 0.15 to 1.0 MPa (1.5 to 10.0 bar) (22 to 145 psi) | ||||||||||
| Single Acting | 0.2 to 1.0 MPa (2.0 to 10.0 bar) (28 to 145 psi) | |||||||||||
| Proof Pressure | 1.5 MPa (15 bar) (215 psi) | |||||||||||
| Temprature (℃) | -20 to +70 | |||||||||||
| Speed Range (mm/s) | Double Acting: 30 to 500, Single Acting: 50 to 500 | |||||||||||
| Cushion Type | Bumper | |||||||||||
| Port Size | M5 x 0.8 | 1/8'' | 1/4'' | 3/8'' | ||||||||
Stroke of SDA Series Pneumatic Cylinder:
Symbol of SDA Series Pneumatic Cylinder:
Ordering Code of SDA Series Pneumatic Cylinder:
Criteria for selection: Cylinder thrust:
Installation & Usage:
1. When load changes in the wonk, the cylinder wih abundant output capacity shall be ed.
2. Relative cylinder wth high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3. Necessasy protection measure shall be taken in the evironment with higher humidity. much dust or water drops, oil dust and welding dregs.
4. Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5. The medium used by cyinder shall be fitered to 40μm or below.
6. As both of the front cover and piston of the cylinder are short. typically too large stroke can not be ed.
7. Anti-freezing measure shall be adopted under low temperature environment prevent moisture freezing.
8. The cylinder shall avoid the inluence of side load in operation to maintain the normal work of cylinder and extend the service life.
9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports. The front and back cover can not be dismantled, which shall be especially noticed.
