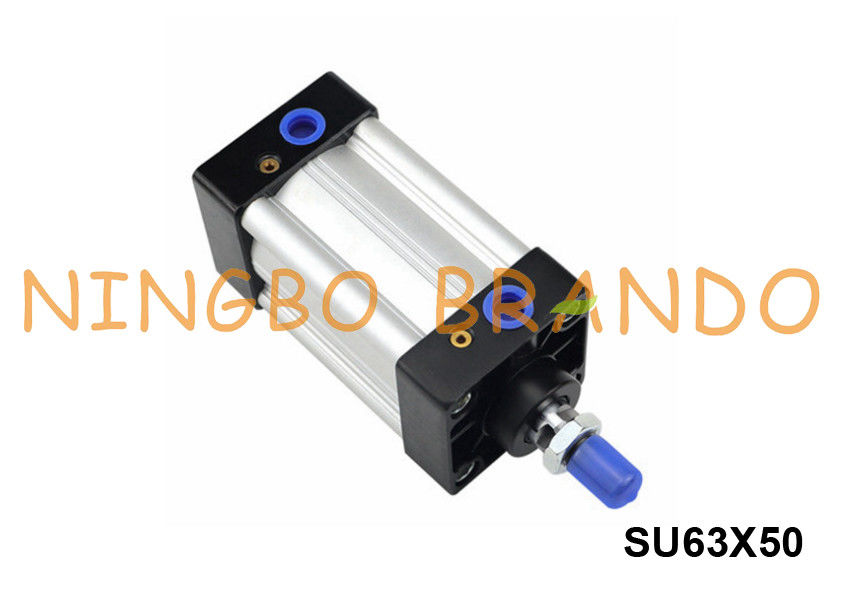

Airtac Type SU63X50 Air Cylinder Pneumatic 63mm Bore 50mm Stroke

Airtac Type SU63X50 Air Cylinder Pneumatic 63mm Bore 50mm Stroke

Pneumatic cylinders, also known as pneumatic actuators, operate by using the force of compressed air against a moving piston to create mechanical movement. Pneumatic cylinders are specified depending on the mass of the load being moved, the distance it is to be moved over and the time required to move the load.

Single acting and double acting pneumatic cylinders are the common options available. In single-acting pneumatic cylinders, air forces the piston against a spring which returns the cylinder to its default position when the air is removed. In double-acting pneumatic cylinders, air is used to push the piston one way and to return the cylinder to its default position. Air is applied on the opposite side of the piston while on the original side and the air is allowed to exhaust.

Specifications of SU Series Pneumatic Cylinder:

Stroke of SU Series Pneumatic Cylinder:

Symbol of SU Series Pneumatic Cylinder:


Ordering Code of SU Series Pneumatic Cylinder:

Criteria for selection: Cylinder thrust:

Installation & Usage:
1. When load changes in the work, the cylinder with abundant output capacity shall be ed.
2. Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3. Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4. Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5. The medium used by cylinder shall be filtered to 40μm or below.
6. Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
7. The cylinder shall be carried out test run without load before application. Prior to run, buffer shall be turned to the minimum and gradually released to avoid the damage on cylinder caused by excessive impact.
8. The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports.
