| Product Series: | SU | Bore Size (mm): | 32, 40, 50, 63, 80, 100, 125, 160, 200 |
|---|---|---|---|
| Standard Stroke (mm): | 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 | Acting Type: | Double Acting |
| Operating Pressure Range: | 0.1 To 1.0 MPa | Proof Pressure: | 1.5 MPa |
| High Light: | Pneumatic Cylinder 50mm Bore 100mm Stroke,Airtac Air Cylinder 50mm Stroke,Airtac SU50X100 |
||

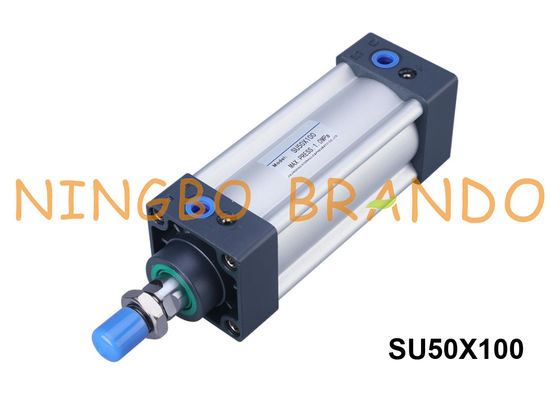

Airtac Type SU50X100 Pneumatic Air Cylinder 50mm Bore 100mm Stroke
Standard pneumatic cylinders allow standardized machine layouts and guarantee high availability in combination with a wide range of mounting options. The range extends from Mini and round cylinders (Ø8-25 mm, ISO 6432) via short-stroke and compact cylinders (Ø16-100 mm, ISO 15524 and ISO 21287) up to Profile and tie rod cylinders (Ø32-320 mm, ISO 15552 and NFE 49-001).
Innumerable design variants and sizes in the different cylinder series make it easy for the user to select the most suitable cylinder solutions for his specific application. The broad range of cylinders allows the cylinders to be specifically chosen, not only the basis of function and quality, but also under strict cost considerations.
Specifications of SU Series Pneumatic Cylinder:
| Bore Size (mm) | 32 | 40 | 50 | 63 | 80 | 100 | |
| Acting Type | Double Acting | ||||||
| Fluid | Air (to be filtered by 40μm filter element) | ||||||
| Mounting Type | SU | Basic FA FB CA CB LB TC TCM1 | |||||
| SUD, SUJ | Basic FA LB TC TCM1 | ||||||
| Operating Pressure Range | 0.1 to 1.0 MPa (1.0 to 10.0 bar) (15 to 145 psi) | ||||||
| Proof Pressure | 1.5 MPa (15 bar) (215 psi) | ||||||
| Temprature (℃) | -20 to +80 | ||||||
| Speed Range (mm/s) | 30 to 800 | ||||||
| Cushion Type | Variable cushion | ||||||
| Adjustable Cushion Stroke (mm) | 21 | 28 | 29 | ||||
| Port Size | 1/8'' | 1/4'' | 3/8'' | 1/2'' | |||
Stroke of SU Series Pneumatic Cylinder:
Symbol of SU Series Pneumatic Cylinder:
Ordering Code of SU Series Pneumatic Cylinder:
Criteria for selection: Cylinder thrust:
Installation & Usage:
1. When load changes in the work, the cylinder with abundant output capacity shall be ed.
2. Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3. Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4. Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5. The medium used by cylinder shall be filtered to 40μm or below.
6. Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
7. The cylinder shall be carried out test run without load before application. Prior to run, buffer shall be turned to the minimum and gradually released to avoid the damage on cylinder caused by excessive impact.
8. The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports.
