| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | SU |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4-7 work days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Product Series: | SU | Bore Size (mm): | 32, 40, 50, 63, 80, 100, 125, 160, 200 |
|---|---|---|---|
| Standard Stroke (mm): | 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 | Acting Type: | Double Acting |
| Operating Pressure Range: | 0.1 To 1.0 MPa | Proof Pressure: | 1.5 MPa |
| High Light: | Pneumatic Cylinder 50mm Bore 50mm Stroke,Pneumatic Cylinder Airtac,Airtac SU50X50 |
||

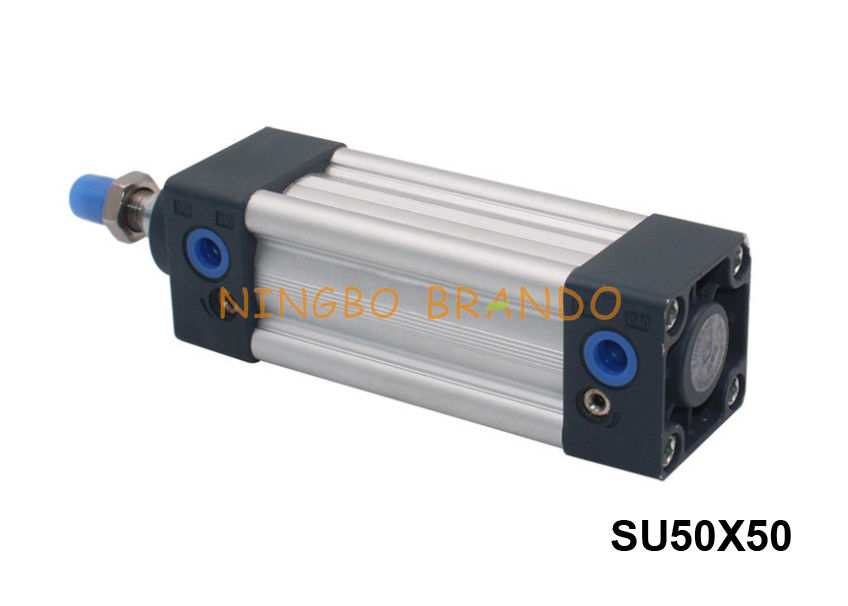

Airtac Type SU50X50 Air Pneumatic Cylinder 50mm Bore 50mm Stroke
Common Pneumatic Cylinder Types:
Single-acting cylinders (SAC) use pressure that forms from compacted air. In majority of cases, the extension SAC cylinders have is very limited due to the amount of space the compacted spring takes.
Double-acting cylinders (DAC) use air pressure in order to retract strokes and move in range. Two parts make up this cylinder, both of which let the air in. One is for outstroke and the other, in-stroke.
Telescoping cylinders, also known as telescopic cylinders come in single-acting and double-acting modes. Their designs allow for much longer strokes and tend to be reserved for uses where the piston has to face minimal side loading.
Specifications of SU Series Pneumatic Cylinder:
| Bore Size (mm) | 32 | 40 | 50 | 63 | 80 | 100 | |
| Acting Type | Double Acting | ||||||
| Fluid | Air (to be filtered by 40μm filter element) | ||||||
| Mounting Type | SU | Basic FA FB CA CB LB TC TCM1 | |||||
| SUD, SUJ | Basic FA LB TC TCM1 | ||||||
| Operating Pressure Range | 0.1 to 1.0 MPa (1.0 to 10.0 bar) (15 to 145 psi) | ||||||
| Proof Pressure | 1.5 MPa (15 bar) (215 psi) | ||||||
| Temprature (℃) | -20 to +80 | ||||||
| Speed Range (mm/s) | 30 to 800 | ||||||
| Cushion Type | Variable cushion | ||||||
| Adjustable Cushion Stroke (mm) | 21 | 28 | 29 | ||||
| Port Size | 1/8'' | 1/4'' | 3/8'' | 1/2'' | |||
Stroke of SU Series Pneumatic Cylinder:
Symbol of SU Series Pneumatic Cylinder:
Ordering Code of SU Series Pneumatic Cylinder:
Criteria for selection: Cylinder thrust:
Installation & Usage:
1. When load changes in the work, the cylinder with abundant output capacity shall be ed.
2. Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3. Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4. Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5. The medium used by cylinder shall be filtered to 40μm or below.
6. Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
7. The cylinder shall be carried out test run without load before application. Prior to run, buffer shall be turned to the minimum and gradually released to avoid the damage on cylinder caused by excessive impact.
8. The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Brandon
Tel: +8613454729544
