Double Acting Pneumatic Air Cylinders Airtac Type SU Series

Double Acting Pneumatic Air Cylinders Airtac Type SU Series

  • Double Acting Pneumatic Air Cylinders Airtac Type SU Series
Double Acting Pneumatic Air Cylinders Airtac Type SU Series
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: SU
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-7 work days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Series: SU Bore Size (mm): 32, 40, 50, 63, 80, 100, 125, 160, 200
Standard Stroke (mm): 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 Acting Type: Double Acting
Operating Pressure Range: 0.1 To 1.0 MPa Proof Pressure: 1.5 MPa
High Light:

Air Cylinder Double Acting

,

Airtac Pneumatic Cylinders

,

Airtac Cylinder SU Series

Double Acting Pneumatic Air Cylinders Airtac Type SU Series



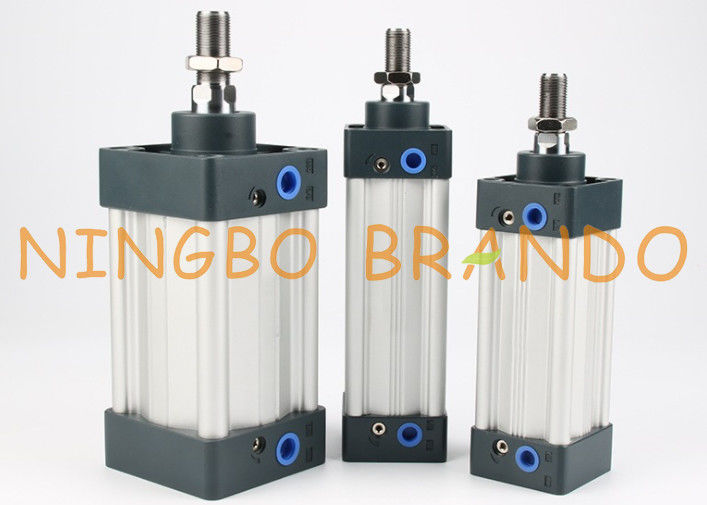

Airtac type SU series Pneumatic Cylinders are double acting cylinders with extruded aluminum construction. The extrusion is the lobe profile and is the original Airtac standard extrusion type cylinder. Bore sizes range from 32mm up to 100mm. Cushions are standard and a magnetic piston optional. Stroke adjustment and double rod end versions are available.


Specifications of SU Series Pneumatic Cylinder:

Bore Size (mm) 32 40 50 63 80 100
Acting Type Double Acting
Fluid Air (to be filtered by 40μm filter element)
Mounting Type SU Basic FA FB CA CB LB TC TCM1
SUD, SUJ Basic FA LB TC TCM1
Operating Pressure Range 0.1 to 1.0 MPa (1.0 to 10.0 bar) (15 to 145 psi)
Proof Pressure 1.5 MPa (15 bar) (215 psi)
Temprature (℃) -20 to +80
Speed Range (mm/s) 30 to 800
Cushion Type Variable cushion
Adjustable Cushion Stroke (mm) 21 28 29
Port Size 1/8'' 1/4'' 3/8'' 1/2''


Stroke of SU Series Pneumatic Cylinder:
Double Acting Pneumatic Air Cylinders Airtac Type SU Series 0


Symbol of SU Series Pneumatic Cylinder:
Double Acting Pneumatic Air Cylinders Airtac Type SU Series 1

Ordering Code of SU Series Pneumatic Cylinder:
Double Acting Pneumatic Air Cylinders Airtac Type SU Series 2
Criteria for selection: Cylinder thrust:
Double Acting Pneumatic Air Cylinders Airtac Type SU Series 3



Installation & Usage:
1. When load changes in the work, the cylinder with abundant output capacity shall be ed.
2. Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3. Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4. Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5. The medium used by cylinder shall be filtered to 40μm or below.
6. Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
7. The cylinder shall be carried out test run without load before application. Prior to run, buffer shall be turned to the minimum and gradually released to avoid the damage on cylinder caused by excessive impact.
8. The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports.
