0545 110-030 NASS Type Solenoid Valve Coil System 13
Voltage:
AC220V AC110V/ DC12V DC24V (±10%)
Hole Size:
14.6 Mm
Ambient Temperature:
- 20 °C ~ + 50 °C
Application:
Water Solenoid Valve And Electronic Drain Valve
Insulation Class:
F, H
Connection Type:
DIN43650A
Degree Of Protection With Connector:
IP 65 (IP 67 On Request)
Highlight:
113-030-0123 Magnetic Coil
,
113-030-0124 Magnetic Coil
,
113-030-0125 113-030-0132 Electrical Coil
24V DC 113-030-0123 113-030-0124 Nass Type 0545 Magnetic Coil

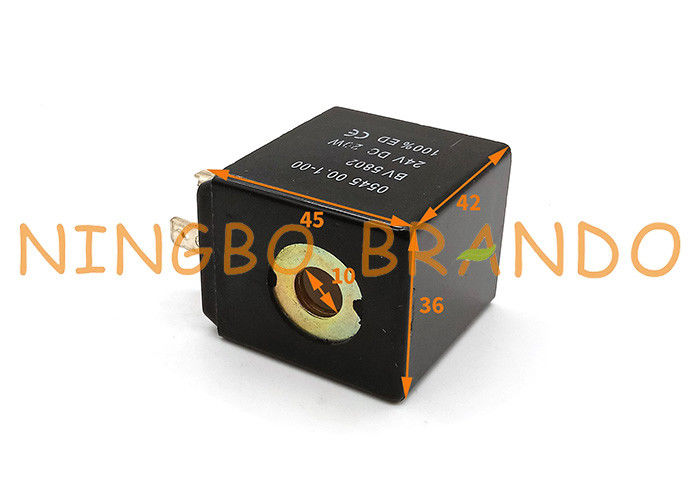

Main dimension of Nass Type 0545 Electronic Drain Solenoid Coils:
Technical parameter of 0545 110-030 NASS Type Solenoid Valve Coil:
Code No
Voltages
Frequency(Hz)
Power (W)
Power (VA)
113-030-0123
24vDC
4,1
113-030-0144
24VAC
50
8,8
113-030-0144
24VAC
60
7,6
113-030-0128
220VAC
50
9,0
113-030-0128
240VAC
60
9,2
113-030-0142
230VAC
50
8,8
113-030-0142
230VAC
60
7,6
113-030-0121
220VAC
50
14,0
113-030-0124
24VDC
-
7,9
113-030-0135
24VAC
50
14,0
113-030-0135
24VAC
60
12,0
113-030-0279
110 VAC
50
13,9
113-030-0279
110VAC
60
12,2
113-030-0125
24VDC
-
11,9
113-030-0129
24VAC
50
21,0
113-030-0129
24VAC
60
18,0
113-030-0126
110VAC
50
21,5
113-030-0141
230 VAC
50
22,0
113-030-0141
230VAC
60
19,0
113-030-0120
12VDC
-
17,5
113-030-0127
24VAC
50
25,0
113-030-0132
24VDC
-
18,5
113-030-0120
36VAC
50
25,0
113-030-0137
110VAC
50
27,5
113-030-0140
110VAC
60
26,5
113-030-0137
120VAC
60
28,0
113-030-0133
220VAC
50
25,5
113-030-0122
220VAC
50
22,0
113-030-0138
230VAC
50
25,5
113-030-0133
240VAC
60
25,0
113-030-0138
240VAC
60
27,0
Phyical map of 113-030-0028 nass type electromagnetic coil:
Applicatoin of nass type 113-030-0035 electric magnetic coil:
More details about 0545 110-030 series Solenoid Coil can be found below the Youtube Video:
How we control solenoid coil quality during production:
1, Inspect raw material of enameled copper wire and thermoplastic or thermosetting plastic by mesure and testing
2, Set up parameters on coil winding machines, then manual inspect one by one after winding
3, After welded electrial terminations then tested by testing machines one by one to ensure all coils is workable
4, After moulded with thermoplastic or thermosetting plastic will be tested 100% again, and also will select 10% by random and assembled with solenoid valve then let it work for testing life.
5, After selected out some failed pneumatic solenoid coil, we will put them with stickers and marked failed reason on paper then destroy to avoid mixed into bulk order goods.
Product Features:
1. Using high quality wire which has UL approved; 2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.
