220V AC 113-030-0128 113-030-0121 Nass Type Magnet System 13 Bobine

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	BB14542505

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Inner Box, Carton, Pallet
Delivery Time:	4-8 days
Payment Terms:	L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability:	500000 set per month

Contact Now

Detailed Product Description

Type:	0545 110-030 NASS Type	Material:	Thermoset Resin, Copper
Product Name:	0545 110-030 NASS Type Solenoid Valve Coil System 13	Voltage:	AC220V AC110V/ DC12V DC24V (±10%)
Hole Size:	14.6 Mm	Ambient Temperature:	- 20 °C ~ + 50 °C
Application:	Water Solenoid Valve And Electronic Drain Valve	Insulation Class:	F, H
Connection Type:	DIN43650A	Degree Of Protection With Connector:	IP 65 (IP 67 On Request)
High Light:	220V AC 113-030-0128 Bobine , 220V AC 113-030-0121 Bobine , 113-030-0133 113-030-0122 Solenoid Coil

220V AC 113-030-0128 113-030-0121 Nass Type Magnet System 13 Bobine

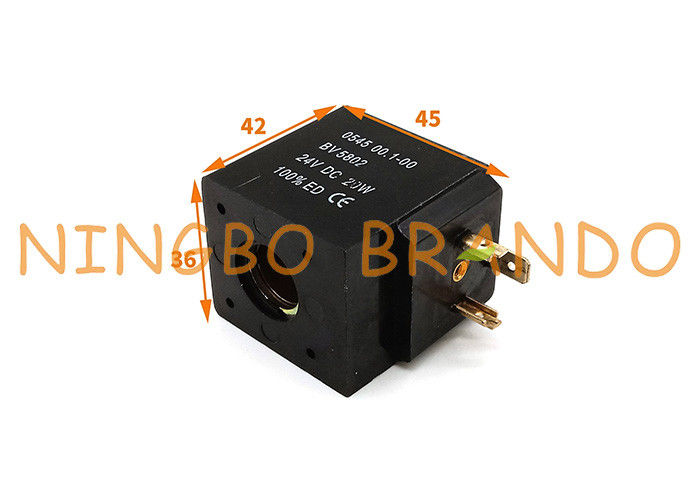

Main dimension of Nass Type 0545 Electronic Drain Solenoid Coils:

220V AC 113-030-0128 113-030-0121 Nass Type Magnet System 13 Bobine 0

Technical parameter of 0545 110-030 NASS Type Solenoid Valve Coil:

Code No	Voltages	Frequency(Hz)	Power (W)	Power (VA)
113-030-0123	24vDC		4,1
113-030-0144	24VAC	50		8,8
113-030-0144	24VAC	60		7,6
113-030-0128	220VAC	50		9,0
113-030-0128	240VAC	60		9,2
113-030-0142	230VAC	50		8,8
113-030-0142	230VAC	60		7,6
113-030-0121	220VAC	50		14,0
113-030-0124	24VDC	-	7,9
113-030-0135	24VAC	50		14,0
113-030-0135	24VAC	60		12,0
113-030-0279	110 VAC	50		13,9
113-030-0279	110VAC	60		12,2
113-030-0125	24VDC	-	11,9
113-030-0129	24VAC	50		21,0
113-030-0129	24VAC	60		18,0
113-030-0126	110VAC	50		21,5
113-030-0141	230 VAC	50		22,0
113-030-0141	230VAC	60		19,0
113-030-0120	12VDC	-	17,5
113-030-0127	24VAC	50		25,0
113-030-0132	24VDC	-	18,5
113-030-0120	36VAC	50		25,0
113-030-0137	110VAC	50		27,5
113-030-0140	110VAC	60		26,5
113-030-0137	120VAC	60		28,0
113-030-0133	220VAC	50		25,5
113-030-0122	220VAC	50		22,0
113-030-0138	230VAC	50		25,5
113-030-0133	240VAC	60		25,0
113-030-0138	240VAC	60		27,0

Phyical map of 113-030-0028 nass type electromagnetic coil:

220V AC 113-030-0128 113-030-0121 Nass Type Magnet System 13 Bobine 1

Applicatoin of nass type 113-030-0035 electric magnetic coil:

220V AC 113-030-0128 113-030-0121 Nass Type Magnet System 13 Bobine 2

More details about 0545 110-030 series Solenoid Coil can be found below the Youtube Video:

Attention:
1. This air suspension compressor pump solenoid coil is made of high quality components.

2. Replaces the original air compressor solenoid coil of your car and equal the original quality.
3. Please double confirm the compatibility as well as the OEM number before purchasing.
4. Instruction is not included. Professional installation is recommended.

Product Features:
1. Using high quality wire which has UL approved; 2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!
