| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | MA |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4-7 work days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Product Series: | MA Round Body Air Cylinder Stainless Steel | Bore Size (mm): | 16, 20, 25, 32, 40, 50, 63 |
|---|---|---|---|
| Standard Stroke (mm): | 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 | Acting Type: | Double Acting, Single Acting |
| Operating Pressure Range: | Double Acting: 0.15 To 1.0 MPa, Single Acting: 0.2 To 1.0 MPa | Proof Pressure: | 1.5 MPa |
| Highlight: | Pneumatic Piston Cylinders,Mini Air Pneumatic Cylinders,Airtac MA16X75 |
||

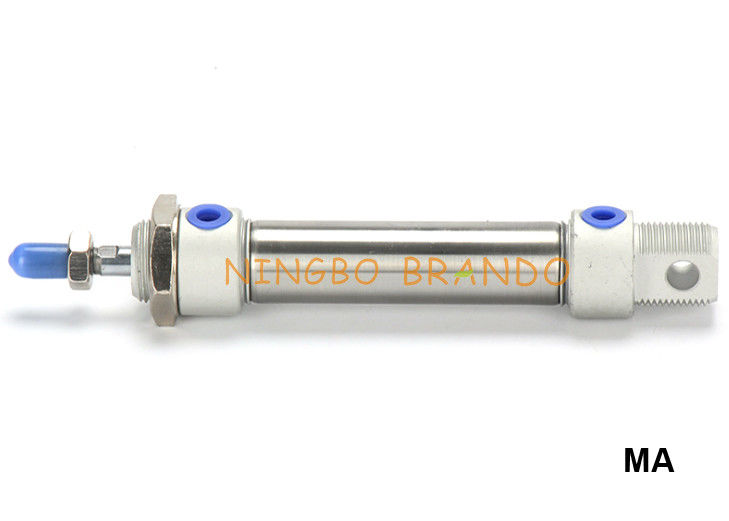

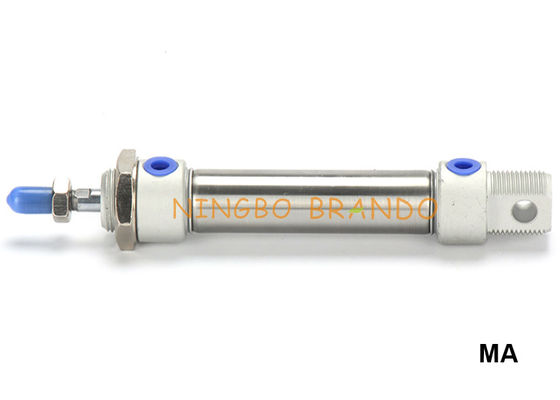

Mini Air Pneumatic Cylinders Stainless Steel Airtac Type MA16X75
A pneumatic air cylinder uses compressed air for its operation it is a linear actuator. The compressed air will be converted into kinetic energy or it can also be described as the conversion of potential energy into kinetic energy. This kinetic energy is used in the loads to move it. So when the compressed air is converted into kinetic energy the air will expand so that it can reach the atmospheric pressure. The piston in the cylinder is forced by the expanded air in the desired direction. The piston is mostly a disc or cylinder, and the piston rod will transfer the generated force to the object that is to be moved.
Specifications of MA Series Pneumatic Cylinder:
| Bore Size (mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | ||
| Acting Type | MSA / MTA | Single Acting | - | ||||||
| MA / MAD / MAJ | Double Acting | - | |||||||
| MAR | - | Double Acting | |||||||
| MAC / MACD / MACJ | Double Acting with cushion | ||||||||
| Fluid | Air (to be filtered by 40μm filter element) | ||||||||
| Operating Pressure Range | Double Acting | 0.15 to 1.0 MPa (1.5 to 10.0 bar) (22 to 145 psi) | |||||||
| Single Acting | 0.2 to 1.0 MPa (2.0 to 10.0 bar) (28 to 145 psi) | ||||||||
| Proof Pressure | 1.5 MPa (15 bar) (215 psi) | ||||||||
| Temprature (℃) | -20 to +70 | ||||||||
| Speed Range (mm/s) | Double Acting: 30 to 800, Single Acting: 50 to 800 | ||||||||
| Cushion Type |
MAC / MACD / MACJ Series: Variable cushion; Other Series: Bumper |
||||||||
| Port Size | M5x0.8 | 1/8'' | 1/4'' | ||||||
Stroke of MA Series Pneumatic Cylinder:
Symbol of MA Series Pneumatic Cylinder:
Ordering Code of MA Series Pneumatic Cylinder:
Criteria for selection: Cylinder thrust:
Installation & Usage:
1. When load changes in the work, the cylinder with abundant output capacity shall be ed.
2. Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3. Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4. Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5. The medium used by cylinder shall be filtered to 40μm or below.
6. Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
7. The cylinder shall be carried out test run without load before application. Prior to run, buffer shall be turned to the minimum and gradually released to avoid the damage on cylinder caused by excessive impact.
8. The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports.
