0545 110-030 NASS Type Solenoid Valve Coil System 13
Voltage:
AC220V AC110V/ DC12V DC24V (±10%)
Hole Size:
14.6 Mm
Ambient Temperature:
- 20 °C ~ + 50 °C
Application:
Water Solenoid Valve And Electronic Drain Valve
Insulation Class:
F, H
Connection Type:
DIN43650A
Degree Of Protection With Connector:
IP 65 (IP 67 On Request)
Highlight:
113-030-0188 Magnetic Coil
,
113-030-0189 Magnetic Coil
,
113-030-0190 Solenoid Bobine
0545 24V DC 113-030-0188 113-030-0189 113-030-0190 Magnetic Coil
This electronic drain solenoid valve coil is commonly used in the 0546 110-030 coil of the NASS type. Here are some common questions about solneoid coils to answer for you:
1. Question: what is the ambient temperature range for solenoid coils?
Answer: Solenoid coils are generally suitable for temperatures between -20 and -50 degrees Celsius, but depending on the temperature level of the enamels and the temperature rise of the coils.
2. Question: what kind of material is the solenoid valve made of?
Answer: the general solenoid valve material is brass, but according to customer requirements, can choose stainless steel and aluminum material.
3. Question: when the electromagnetic coil is energized, how to solve the noise?
Answer: the origin of the problem of high noise of electromagnetic coil lies in the pilot head. The pilot head has the difference between AC and DC. The pilot assembly of AC needs to add magnetic separation ring on the static core, which can effectively control the noise problem.
4. Question: how to choose the type of electric magnetic coil?
Answer: you can provide the inner hole size, height, and width of the electric magnetic coil to find similar or the same electromagnetic coil.
Technical parameter of 0545 110-030 NASS Type Solenoid Valve Coil:
Code No
Voltages
Frequency(Hz)
Power (W)
Power (VA)
113-030-0123
24vDC
4,1
113-030-0144
24VAC
50
8,8
113-030-0144
24VAC
60
7,6
113-030-0128
220VAC
50
9,0
113-030-0128
240VAC
60
9,2
113-030-0142
230VAC
50
8,8
113-030-0142
230VAC
60
7,6
113-030-0121
220VAC
50
14,0
113-030-0124
24VDC
-
7,9
113-030-0135
24VAC
50
14,0
113-030-0135
24VAC
60
12,0
113-030-0279
110 VAC
50
13,9
113-030-0279
110VAC
60
12,2
113-030-0125
24VDC
-
11,9
113-030-0129
24VAC
50
21,0
113-030-0129
24VAC
60
18,0
113-030-0126
110VAC
50
21,5
113-030-0141
230 VAC
50
22,0
113-030-0141
230VAC
60
19,0
113-030-0120
12VDC
-
17,5
113-030-0127
24VAC
50
25,0
113-030-0132
24VDC
-
18,5
113-030-0120
36VAC
50
25,0
113-030-0137
110VAC
50
27,5
113-030-0140
110VAC
60
26,5
113-030-0137
120VAC
60
28,0
113-030-0133
220VAC
50
25,5
113-030-0122
220VAC
50
22,0
113-030-0138
230VAC
50
25,5
113-030-0133
240VAC
60
25,0
113-030-0138
240VAC
60
27,0
Main dimension of Nass Type 0545 Electronic Drain Solenoid Coils:

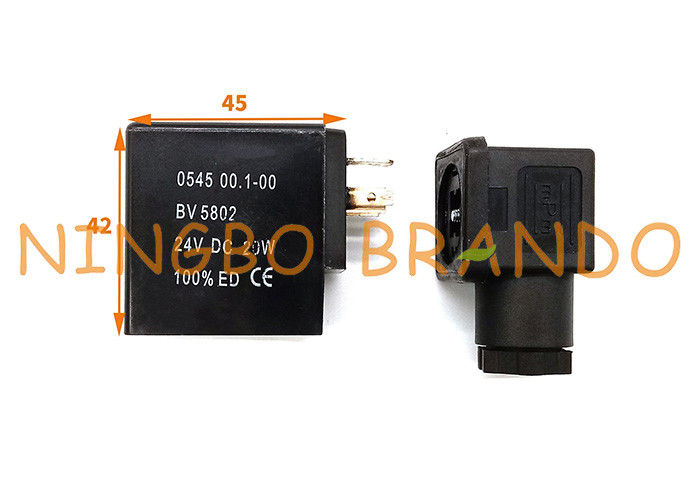

Phyical map of 113-030-0028 nass type electromagnetic coil:
Applicatoin of nass type 113-030-0035 electric magnetic coil:
More details about 0545 110-030 series Solenoid Coil can be found below the Youtube Video:
Product Features:
1. Using high quality wire which has UL approved; 2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.
