| Product Series: | ACQ Compact Cylinder | Bore Size (mm): | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 |
|---|---|---|---|
| Standard Stroke (mm): | 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75, 80, 90, 100 | Acting Type: | Double Acting, Single Acting_ Push Type, Single Acting_Pull Type |
| Operating Pressure Range: | 0.15 MPa To 1.0 MPa | Proof Pressure: | 1.5 MPa |
| High Light: | Compact Pneumatic Cylinders,Double Acting Pneumatic Cylinder,Pneumatic Cylinder Airtac |
||

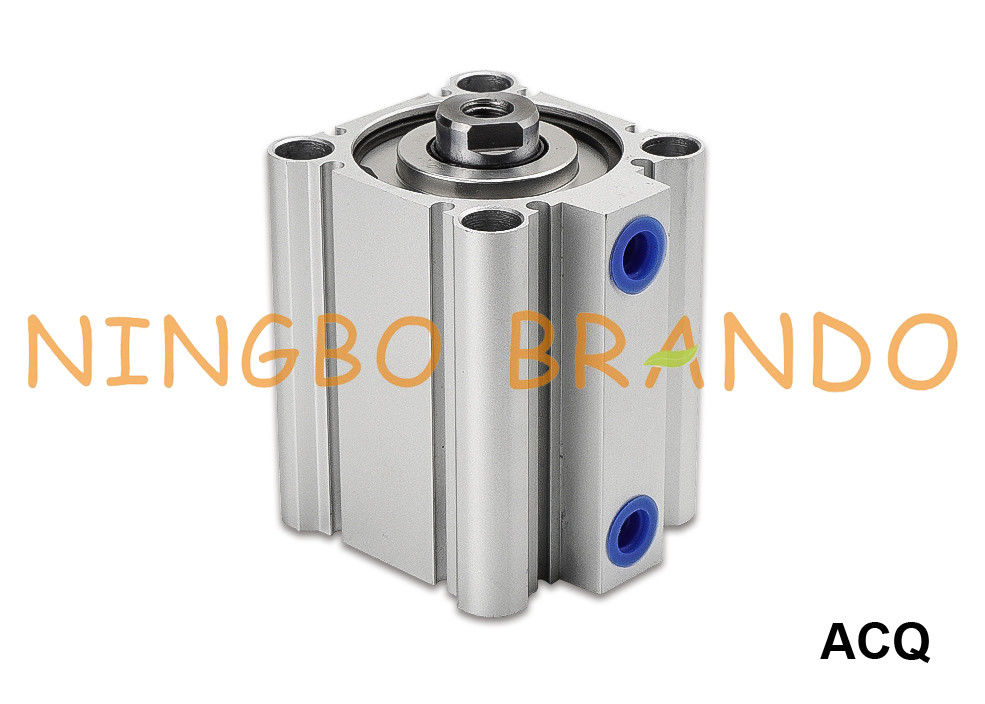

Compact Pneumatic Cylinders Double Acting Airtac Type ACQ Series
Pneumatic compact cylinders consist of pistons in enclosures that generate linear motion. Their compact size and low weight range allow for shorter strokes than standard cylinders which make them suitable for positioning, clamping and ejecting smaller components.
Single-acting pneumatic compact cylinders have one port through which compressed air enters to push the piston rod in one direction. Spring mechanisms then pull the rod back in the other direction, creating the linear movement. In double-acting pneumatic compact cylinders, the air is forced in and out through two different ports.
Specifications of ACQ Series Pneumatic Cylinder:
| Bore Size (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Acting Type | Double Acting | ||||||||||
| Single Acting_ Push Type, Single Acting_Pull Type | - | ||||||||||
| Fluid | Air (to be filtered by 40μm filter element) | ||||||||||
| Operating Pressure Range | 0.15 to 1.0 MPa (1.5 to 10.0 bar) (22 to 145 psi) | ||||||||||
| Proof Pressure | 1.5 MPa (15 bar) (215 psi) | ||||||||||
| Temprature (℃) | -20 to +70 | ||||||||||
| Speed Range (mm/s) | Double Acting: 30 to 500, Single Acting: 50 to 500 | ||||||||||
| Cushion Type | Bumper | ||||||||||
| Port Size | M5 x 0.8 | 1/8'' | 1/4'' | 3/8'' | |||||||
Stroke of ACQ Series Pneumatic Cylinder:
Symbol of ACQ Series Pneumatic Cylinder:
Ordering Code of ACQ Series Pneumatic Cylinder:
Criteria for selection: Cylinder thrust:
Installation & Usage:
1. When load changes in the wonk, the cylinder wih abundant output capacity shall be ed.
2. Relative cylinder wth high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3. Necessasy protection measure shall be taken in the evironment with higher humidity. much dust or water drops, oil dust and welding dregs.
4. Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5. The medium used by cyinder shall be fitered to 40μm or below.
6. As both of the front cover and piston of the cylinder are short. typically too large stroke can not be ed.
7. Anti-freezing measure shall be adopted under low temperature environment prevent moisture freezing.
8. The cylinder shall avoid the inluence of side load in operation to maintain the normal work of cylinder and extend the service life.
9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports. The front and back cover can not be dismantled, which shall be especially noticed.
10. C clip Installation:
10.1. Removal & Itallatlon of C clip must be done with proper tool & care.
10.2. Ensure c clip is securely fitted into the proper slot to prevent leakage.
