| Place of Origin: | Ningbo, China |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | ACQ |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4-7 work days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Product Series: | ACQ Compact Cylinder | Bore Size (mm): | 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 |
|---|---|---|---|
| Standard Stroke (mm): | 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75, 80, 90, 100 | Acting Type: | Double Acting, Single Acting_ Push Type, Single Acting_Pull Type |
| Operating Pressure Range: | 0.15 MPa To 1.0 MPa | Proof Pressure: | 1.5 MPa |
| High Light: | Pneumatic Compact Cylinder,Double Rod Compact Cylinder,Compact Air Cylinders |
||

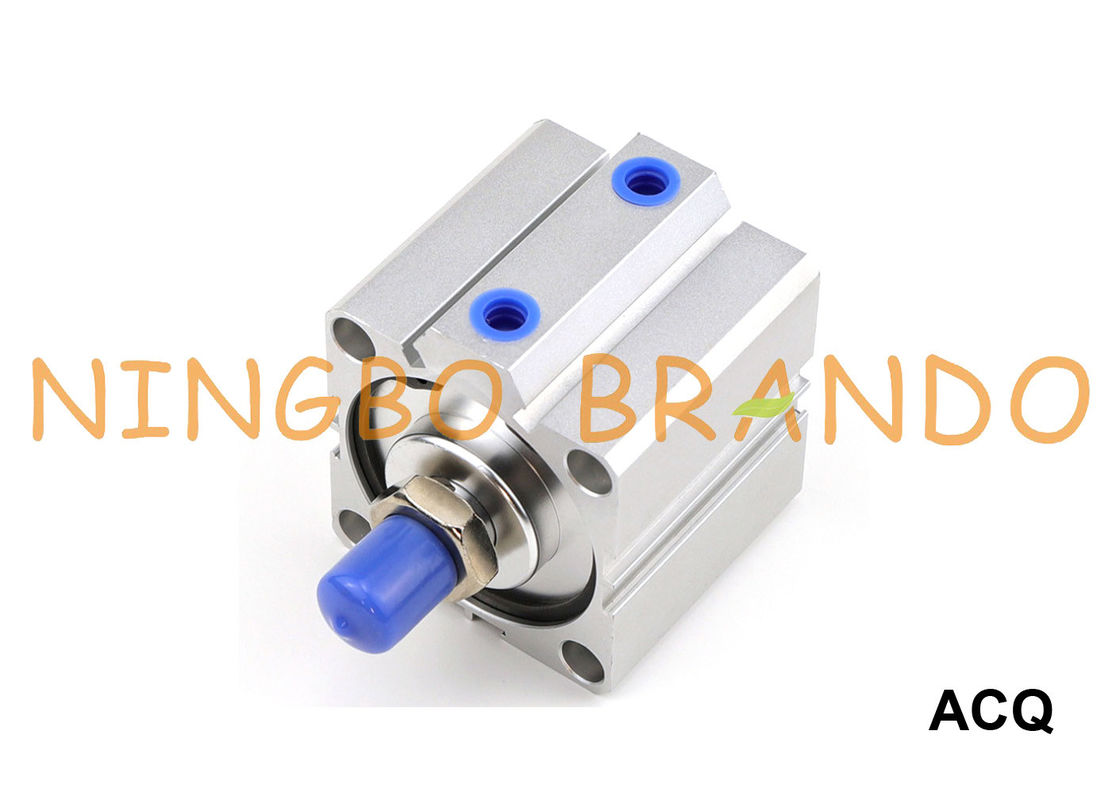

Double Rod Compact Air Cylinder Pneumatic Airtac Type ACQ Series
A pneumatic cylinder uses compressed air for its operation it is a linear actuator. The compressed air will be converted into kinetic energy or it can also be described as the conversion of potential energy into kinetic energy. This kinetic energy is used in the loads to move it. So when the compressed air is converted into kinetic energy the air will expand so that it can reach the atmospheric pressure. The piston in the cylinder is forced by the expanded air in the desired direction. The piston is mostly a disc or cylinder, and the piston rod will transfer the generated force to the object that is to be moved.
Specifications of ACQ Series Pneumatic Cylinder:
| Bore Size (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Acting Type | Double Acting | ||||||||||
| Single Acting_ Push Type, Single Acting_Pull Type | - | ||||||||||
| Fluid | Air (to be filtered by 40μm filter element) | ||||||||||
| Operating Pressure Range | 0.15 to 1.0 MPa (1.5 to 10.0 bar) (22 to 145 psi) | ||||||||||
| Proof Pressure | 1.5 MPa (15 bar) (215 psi) | ||||||||||
| Temprature (℃) | -20 to +70 | ||||||||||
| Speed Range (mm/s) | Double Acting: 30 to 500, Single Acting: 50 to 500 | ||||||||||
| Cushion Type | Bumper | ||||||||||
| Port Size | M5 x 0.8 | 1/8'' | 1/4'' | 3/8'' | |||||||
Stroke of ACQ Series Pneumatic Cylinder:
Symbol of ACQ Series Pneumatic Cylinder:
Ordering Code of ACQ Series Pneumatic Cylinder:
Criteria for selection: Cylinder thrust:
Installation & Usage:
1. When load changes in the wonk, the cylinder wih abundant output capacity shall be ed.
2. Relative cylinder wth high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3. Necessasy protection measure shall be taken in the evironment with higher humidity. much dust or water drops, oil dust and welding dregs.
4. Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5. The medium used by cyinder shall be fitered to 40μm or below.
6. As both of the front cover and piston of the cylinder are short. typically too large stroke can not be ed.
7. Anti-freezing measure shall be adopted under low temperature environment prevent moisture freezing.
8. The cylinder shall avoid the inluence of side load in operation to maintain the normal work of cylinder and extend the service life.
9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports. The front and back cover can not be dismantled, which shall be especially noticed.
10. C clip Installation:
10.1. Removal & Itallatlon of C clip must be done with proper tool & care.
10.2. Ensure c clip is securely fitted into the proper slot to prevent leakage.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Brandon
Tel: +8613454729544
