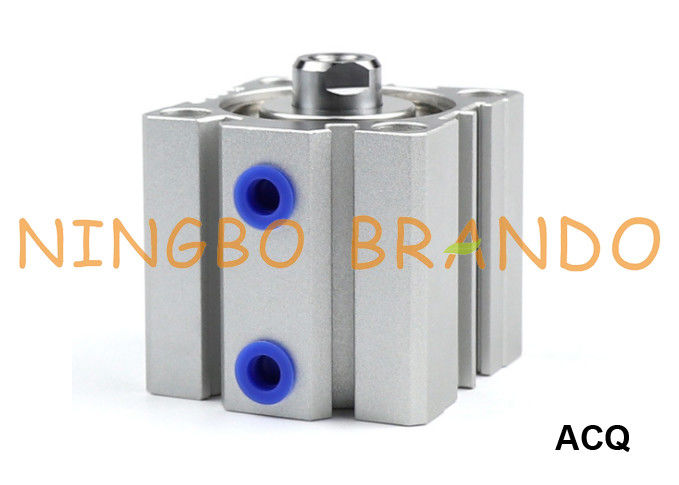

Compact Pneumatic Air Cylinder Double Acting Airtac Type ACQ Series

Compact Pneumatic Air Cylinder Double Acting Airtac Type ACQ Series

  • Compact Pneumatic Air Cylinder Double Acting Airtac Type ACQ Series
Compact Pneumatic Air Cylinder Double Acting Airtac Type ACQ Series
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: ACQ
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-7 work days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Series: ACQ Compact Cylinder Bore Size (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
Standard Stroke (mm): 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75, 80, 90, 100 Acting Type: Double Acting, Single Acting_ Push Type, Single Acting_Pull Type
Operating Pressure Range: 0.15 MPa To 1.0 MPa Proof Pressure: 1.5 MPa
Highlight:

Compact Air Cylinder

,

Compact Cylinder Airtac

,

Compact Pneumatic Cylinder

Compact Pneumatic Air Cylinder Double Acting Airtac Type ACQ Series



Product Features of ACQ series pneumatic cylinder:

1. JIS standard is implemented.
2. C clip is adopted to connect the cylinder body and back cover or front cover, and riveted structure is adopted to connect piston and piston rod to make it compact and reliable.
3. The internal diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability.
4. The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of grease reservation.
5. Compact structure can effectively save installation space.
6. There are magnetic switch slots around the cylinder body, which is convenient to install inducting switch.
7. Installing accessories with various specifications are optional.

Specifications of ACQ Series Pneumatic Cylinder:

Bore Size (mm) 12 16 20 25 32 40 50 63 80 100
Acting Type Double Acting
Single Acting_ Push Type, Single Acting_Pull Type -
Fluid Air (to be filtered by 40μm filter element)
Operating Pressure Range 0.15 to 1.0 MPa (1.5 to 10.0 bar) (22 to 145 psi)
Proof Pressure 1.5 MPa (15 bar) (215 psi)
Temprature (℃) -20 to +70
Speed Range (mm/s) Double Acting: 30 to 500, Single Acting: 50 to 500
Cushion Type Bumper
Port Size M5 x 0.8 1/8'' 1/4'' 3/8''


Stroke of ACQ Series Pneumatic Cylinder:

Compact Pneumatic Air Cylinder Double Acting Airtac Type ACQ Series 0

Symbol of ACQ Series Pneumatic Cylinder:
Compact Pneumatic Air Cylinder Double Acting Airtac Type ACQ Series 1


Ordering Code of ACQ Series Pneumatic Cylinder:
Compact Pneumatic Air Cylinder Double Acting Airtac Type ACQ Series 2


Criteria for selection: Cylinder thrust:

ACQ40X45 Airtac Type Pneumatic Compact Air Cylinder Double Action 3



Installation & Usage:
1. When load changes in the wonk, the cylinder wih abundant output capacity shall be ed.



2. Relative cylinder wth high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.



3. Necessasy protection measure shall be taken in the evironment with higher humidity. much dust or water drops, oil dust and welding dregs.



4. Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.



5. The medium used by cyinder shall be fitered to 40μm or below.



6. As both of the front cover and piston of the cylinder are short. typically too large stroke can not be ed.



7. Anti-freezing measure shall be adopted under low temperature environment prevent moisture freezing.



8. The cylinder shall avoid the inluence of side load in operation to maintain the normal work of cylinder and extend the service life.



9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports. The front and back cover can not be dismantled, which shall be especially noticed.



10. C clip Installation:
   10.1. Removal & Itallatlon of C clip must be done with proper tool & care.
   10.2. Ensure c clip is securely fitted into the proper slot to prevent leakage.
