Name: 24V AC 113-030-0029 113-030-0039 113-030-0040 Solenoid Valve Coil
Brand: Ningbo Brando Hardware Co., Ltd
SKU: BB14542004
Price: 49.10 USD
Availability: InStock

Home Products Solenoid Valve Coil

24V AC 113-030-0029 113-030-0039 113-030-0040 Solenoid Valve Coil

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	None
Model Number:	BB14542004

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	Negotiation
Packaging Details:	Inner boxes, carton, pallet
Delivery Time:	Negotiation
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	250000 sets per month

Contact Now

Detailed Product Description

Type:	Electronic Drain Valve Accessories	Material:	BMC, Brass
Product Name:	Solenoid Coils	Voltage:	DC12V/DC24V/AC110V/AC220V
Dimension(Hole X Width X Height):	14mm X 29mm X 42mm	Power:	Solenoid Control
Color:	Black (Other Color Can Be Customized)	Application:	TM30 Electronic Drain Valve Automatic Control
Insulation Class:	H	Connection Type:	DIN43650B
Highlight:	113-030-0029 Solenoid Valve Coil , 113-030-0039 Solenoid Valve Coil , 113-030-0040 Nass Magnet

24V AC 113-030-0029 113-030-0039 113-030-0040 Solenoid Valve Coil

This 0543 solenoid coil is NASS type 110-030 system 13 solenoid coil, which is a thermosetting coil. The types of electromagnetic coils are mainly as follows: thermoplastic coil, thermosetting coil, explosion-proof coil, waterproof coil and lacquer-dipped coil. Among them, thermoplastic coil and thermosetting coil belong to plastic sealed electromagnetic coil, thermoplastic coil has good weather resistance and toughness, thermosetting coil has a higher temperature resistance grade, smaller shrinkage during injection molding, and relatively flat shape.

Technical parameter of electronic drain valve solenoid coils:

Code No	Voltage	Frequency (Hz)	Power W/VA
113-030-0042	24VDC		2,0
113-030-0045	48VDC		2,1
113-030-0032	48VDC		1,6
113-030-0032	220VAC	50		6,4
113-030-0032	230VAC	50		6,6
113-030-0032	240VAC	50		5,7
113-030-0278	12VDC		6,0
113-030-0026	24VDC		6,1
113-030-0029	24VAC	50		10,8
113-030-0029	24VAC	60		9,6
113-030-0036	110VAC	50		11,1
113-030-0036	120VAC	60		11,7
113-030-0033	220VAC	50		10,8
113-030-0044	12VAC	50		19,3
113-030-0044	12VAC	50		17,1
113-030-0027	24VDC		11,0
113-030-0039	24VAC	50		17,9
113-030-0039	24VAC	60		15,6
113-030-0037	110VAC	50		17,6
113-030-0037	120VAC	50		18,3
113-030-0034	220VAC	50		18,1
113-030-0034	240VAC	60		18,9
113-030-0033	240VAC	50		11,4
113-030-0047	12VDC		15,0
113-030-0028	24VDC		15,0
113-030-0040	24VAC	50		21,8,
113-030-0040	24VAC	50		19.4
113-030-0043	48VAC	50		26,2
113-030-0043	48VAC	50		23,2
113-030-0052	48VAC	50		19,0
113-030-0052	48VAC	50		16,6
113-030-0038	110VAC	50		24,8
113-030-0049	110VAC	50		21,7
113-030-0049	110VAC	50		19,2
113-030-0038	120VAC	50		26,1
113-030-0041	195VDC		16,6
113-030-0035	220VAC	50		22,0
113-030-0050	230vAC	50		21,4
113-030-0050	230VAC	50		19,0
113-030-0031	240VAC	50		17,9
113-030-0035	240VAC	50		23,2

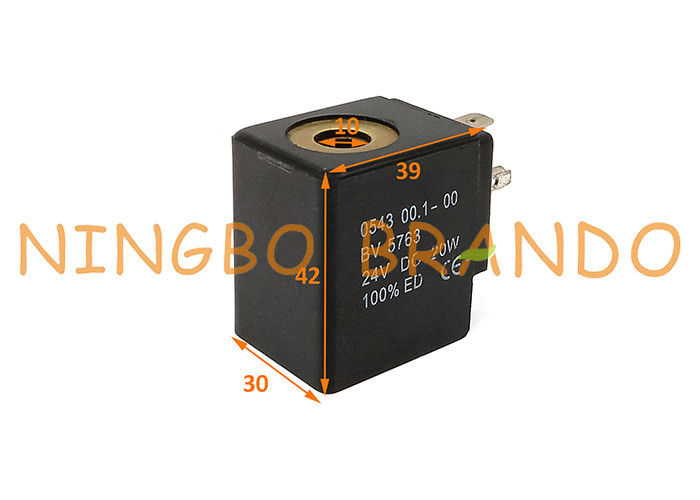

Main dimension of 5043/5045 solenoid coils for water electronic drain valve:

24V AC 113-030-0029 113-030-0039 113-030-0040 Solenoid Valve Coil 0

Detail enlargement of 14 mm Inside Hole 42 High electric solenoid coils:

24V AC 113-030-0029 113-030-0039 113-030-0040 Solenoid Valve Coil 1

Connection of AC220V/DC24V black electromagnetic coils in electronic drain valve:

24V AC 113-030-0029 113-030-0039 113-030-0040 Solenoid Valve Coil 2

Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your inquiry!
