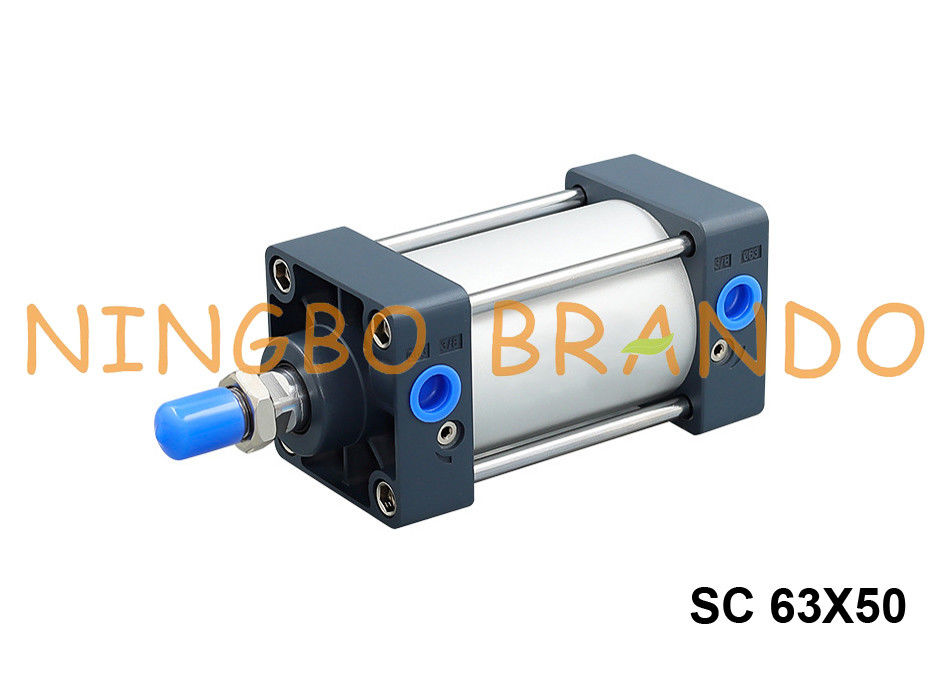

Airtac Type SC63x50 Pneumatic Air Cylinder Double Acting

Airtac Type SC63x50 Pneumatic Air Cylinder Double Acting

  • Airtac Type SC63x50 Pneumatic Air Cylinder Double Acting
Airtac Type SC63x50 Pneumatic Air Cylinder Double Acting
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE, ISO
Model Number: SC
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-7 work days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Series: SC Standard Air Cylinder Tie-Rod Bore Size (mm): 32, 40, 50, 63, 80, 100, 125, 160, 200, 250
Standard Stroke (mm): 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 Acting Type: Double Acting
Operating Pressure Range: 0.15 MPa To 1.0 MPa Proof Pressure: 1.5 MPa
Highlight:

Airtac Pneumatic Air Cylinder

,

Double Acting Pneumatic Air Cylinder

,

Airtac SC63x50

Airtac Type SC63x50 Pneumatic Air Cylinder Double Acting



Design of a pneumatic cylinder:



Most of the pneumatic cylinders with a piston rod contain the following parts: a tube that is closed on both ends with a cap and head. Inside the tube seen below a piston rod moves with a drive piston.



The movement of the piston is triggered by compressed air, controlled by a directional valve. The direction is defined by the chamber into which compressed air is allowed to flow inside the cylinder.



The force is transferred by the piston rod.


Specifications of SC Series Pneumatic Cylinder:

Bore Size (mm) 32 40 50 63 80 100 125 160 200 250
Acting Type Double Acting
Fluid Air (to be filtered by 40μm filter element)
Mounting Type SC Basic FA FB CA CB LB TC TCM1
SCD, SCJ Basic FA LB TC TCM1
Operating Pressure Range 0.15 to 1.0 MPa (1.5 to 10.0 bar) (22 to 145 psi)
Proof Pressure 1.5 MPa (15 bar) (215 psi)
Temprature (℃) -20 to +70
Speed Range (mm/s) 30 to 800 30 to 500
Cushion Type Variable cushion
Adjustable Cushion Stroke (mm) 21 28 29 36 40
Port Size 1/8'' 1/4'' 3/8'' 1/2''


Stroke of SC Series Pneumatic Cylinder:

Bore Size (mm) Standard Stroke (mm) Max. Standard Stroke Max. Stroke
32 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 1000 2000
40

25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500

  600 700 800 900 1000

1200 2000
50 1200 2000
63 1500 2000
80 1500 2000
100 1500 2000
125 1200 2000
160 1500 2000
200 1500 2000
250 1500 2000


Symbol of SC Series Pneumatic Cylinder:

Airtac Type SC63x50 Pneumatic Air Cylinder Double Acting 0

Ordering Code of SC Series Pneumatic Cylinder:
Airtac Type SC63x50 Pneumatic Air Cylinder Double Acting 1

Criteria for selection: Cylinder thrust:
Airtac Type SC63x50 Pneumatic Air Cylinder Double Acting 2



Installation & Usage:
1. When load changes in the work, the cylinder with abundant output capacity shall be ed.
2. Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3. Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4. Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5. The medium used by cylinder shall be filtered to 40μm or below.
6. Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
7. The cylinder shall be carried out test run without load before application. Prior to run, buffer shall be turned to the minimum and gradually released to avoid the damage on cylinder caused by excessive impact.
8. The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports.



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing



Welcome to your any question and inquiry!
