Product Series:	SC Standard Air Cylinder Tie-Rod	Bore Size (mm):	32, 40, 50, 63, 80, 100, 125, 160, 200, 250
Standard Stroke (mm):	25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000	Acting Type:	Double Acting
Operating Pressure Range:	0.15 MPa To 1.0 MPa	Proof Pressure:	1.5 MPa
High Light:	Double Acting Air Pneumatic Cylinders , Airtac Air Pneumatic Cylinders , Pneumatic Actuator Cylinder

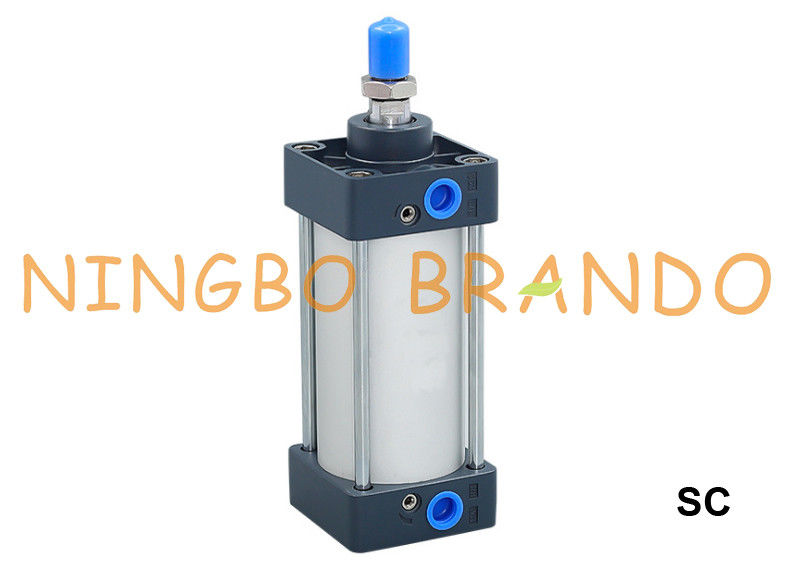

Airtac Type SC Series Pneumatic Air Cylinders Double Acting

Product Features of SC series pneumatic cylinder:

1. The seal of piston adopts heterogeneous two way seal structure. It's dimension is tight and it has the function of grease reservation.
2. It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with high reliability.
3. Compared with ISO 15552 standard cylinder, SC series cylinder with the same bore size is shorter.
4. The buffer adjustment of cylinder is smooth and steady.
5. Cylinders and mounting accessories with several specifications are optional.
6. The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150 degrees celsius.

Specifications of SC Series Pneumatic Cylinder:

Bore Size (mm)		32	40	50	63	80	100	125	160	200	250
Acting Type		Double Acting
Fluid		Air (to be filtered by 40μm filter element)
Mounting Type	SC	Basic FA FB CA CB LB TC TCM1
	SCD, SCJ	Basic FA LB TC TCM1
Operating Pressure Range		0.15 to 1.0 MPa (1.5 to 10.0 bar) (22 to 145 psi)
Proof Pressure		1.5 MPa (15 bar) (215 psi)
Temprature (℃)		-20 to +70
Speed Range (mm/s)		30 to 800								30 to 500
Cushion Type		Variable cushion
Adjustable Cushion Stroke (mm)		21				28	29	36			40
Port Size		1/8''	1/4''		3/8''		1/2''

Stroke of SC Series Pneumatic Cylinder:

Bore Size (mm)	Standard Stroke (mm)	Max. Standard Stroke	Max. Stroke
32	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500	1000	2000
40	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	2000
50		1200	2000
63		1500	2000
80		1500	2000
100		1500	2000
125		1200	2000
160		1500	2000
200		1500	2000
250		1500	2000

Symbol of SC Series Pneumatic Cylinder:

Double Acting Air Pneumatic Cylinders Airtac Type SC Series 0

Ordering Code of SC Series Pneumatic Cylinder:

Criteria for selection: Cylinder thrust:

Installation & Usage:
1. When load changes in the work, the cylinder with abundant output capacity shall be ed.
2.Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3.Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4.Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5.The medium used by cylinder shall be filtered to 40μm or below.
6.Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
7.The cylinder shall be carried out test run without load before application. Prior to run, buffer shall be turned to the minimum and gradually released to avoid the damage on cylinder caused by excessive impact.
8.The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports.
