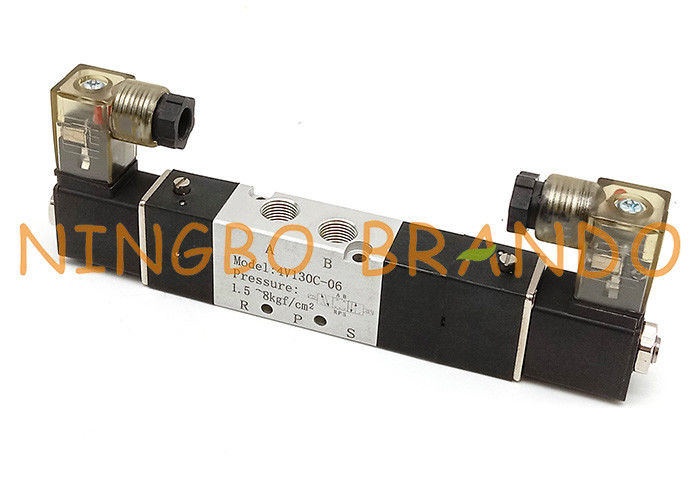

AirTAC Type 4V130C-06 1/8'' 5/3 Way Pmeumatic Solenoid Valve

AirTAC Type 4V130C-06 1/8'' 5/3 Way Pmeumatic Solenoid Valve

5/3-way pneumatic solenoid valves
A 5/3-way valve has five ports and three states. They have two solenoids that each can control a valve state. If no solenoid is energized, the valve returns to the central state. Therefore, the valve is mono-stable. The central state can have different functions, such as closing off all ports. An example of an application is a double acting cylinder that has to be locked at intermediate positions along the stroke.

To Connect a Grommet Coil:

For DC Coils, connect the red wire to your positive lead and the black wire to your negative lead.
For AC Coils, connect the black wire to your HOT lead and the white wire to your NEUTRAL lead.
For Coils provided with Molded Cables, the color of the wire indicates the type of lead:
GREEN = Ground Wire
BLUE = Positive or HOT Wire
BROWN = Negative or Neutral Wire

Technical Data:

Dimension Diagram:

4V130(Grommet)

4V130(Terminal)
