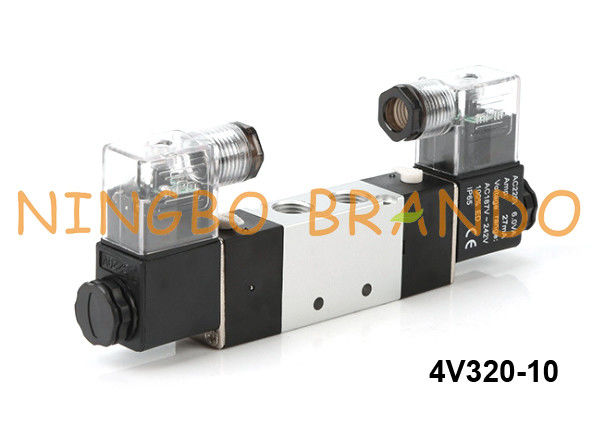

4V320-10 Airtac Type Pneumatic Solenoid Valve 4V320-10-DC24V DC24V

4V320-10 Airtac Type Pneumatic Solenoid Valve 4V320-10-DC24V DC24V

4V320-10 Airtac Type Pneumatic Solenoid Valve 4V320-10-DC24V DC24V
video
4V320-10 Airtac Type Pneumatic Solenoid Valve 4V320-10-DC24V DC24V
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: 4V320-10
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Packaging Details: Individual box, Carton, Pallet
Delivery Time: 4 to 7 working days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Type: 5/2 Way, Double Solenoid Port Size: In=Out=3/8'' Exhaust=1/4''
Pressure Range: 0.15 To 0.8MPa (21 To 114PSI) Max Pressure Resistance: 1.5MPa (215PSI)
Body Material: Aluminum Alloy Max. Frequency: 4 Cycle / Second
High Light:

Solenoid Valve 4V320-10

,

Airtac Pneumatic Solenoid Valve

,

4V320-10 Airtac

4V320-10 Airtac Type Pneumatic Solenoid Valve 4V320-10-DC24V DC24V



Pneumatic solenoid valves control airflow by applying electricity to the solenoid. These components are designed to stop, start or change the direction of airflow.



We carry numerous port and position configurations. Most air control valves are available with AC220V, DC24V, AC110V, AC24V or DC12V solenoid coils. Choose from the 5/2 way NAMUR type, 3/2 way, or the 5/2 way and 5/3 way.



When choosing thread type, please reference the following standards:
NPT - American standard taper pipe threads for general use
M - Metric screw threads M profile
Rp or G (BSPP) - British standard pipe (parallel) threads
PT - JIS taper pipe threads



Data of 4V300 Series Pneumatic Solenoid Valves:

Model
4V310-08
4V320-08
4V330C-08
4V330E-08
4V330P-08
4V310-10
4V320-10
4V330C-10
4V330E-10
4V330P-10
Fluid
Air(to be filtered by 40 μ m filter element)
Acting
Internal pilot or external pilot
Port Size
In=Out=Exhaust=1/4''
In=Out=3/8'' Exhaust=1/4''
Orifice Size
25.00 mm2 (Cv=1.40)
18.00 mm2 (Cv=1.00)
30.00 mm2 (Cv=1.68)
18.00 mm2 (Cv=1.00)
Valve Type
5 port 2 position
5 port 3 position
5 port 2 position
5 port 3 position
Operating Pressure
0.15~0.8MPa(21~114psi)
Proof Pressure
1.5MPa(215psi)
Temperature ℃
-20~70
Material of Body
Aluminum alloy
Max. frequency
4 cycle/sec
4 cycle/sec
4 cycle/sec
4 cycle/sec



Dimension of 4V320-10 Pneumatic Solenoid Valve:

4V320-10 Airtac Type Pneumatic Solenoid Valve 4V320-10-DC24V DC24V 0



Product video of 4V320-10 Pneumatic Solenoid Valve:


Production Video of Pneumatic Solenoid Valve:
