| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4M210-08 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $3 to $ 5 per pc |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 200000 pcs per month |
| Valve Type: | 5 Way 2 Position | Port Size: | In=Out=1/4'' |
|---|---|---|---|
| Pressure Range: | 0.15 To 0.8MPa (21 To 114PSI) | Max Pressure Resistance: | 1.5MPa (215PSI) |
| Body Material: | Aluminum Alloy | Max. Frequency: | 5 Cycle / Second |
| Voltages: | 220V AC, 110V AC, 24V AC, 24V DC, 12V DC | ||
| High Light: | 5/2 G1/4'' Namur Solenoid Valve,Solenoid Valve 4M210-08,Namur Type Solenoid Valve |
||

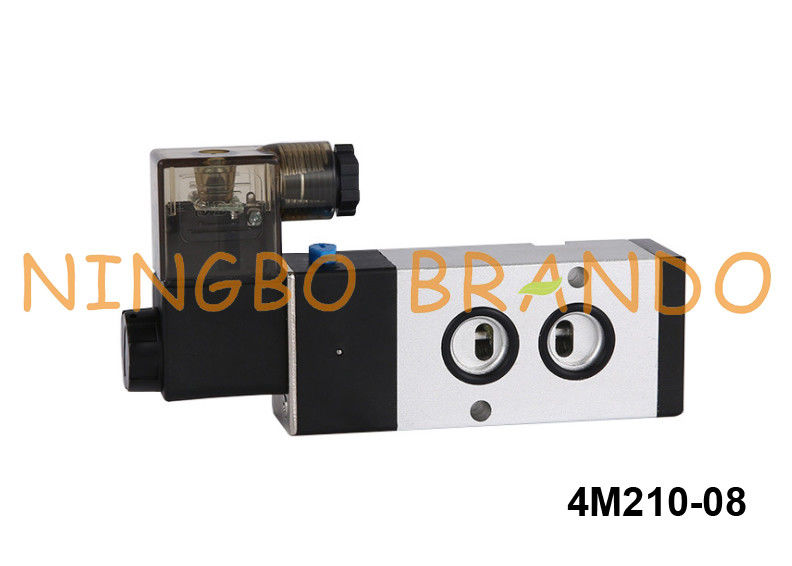

5/2 G1/4'' Namur Solenoid Valve 4M210-08 Airtac Type 24V DC 220V AC
A 5/2 NAMUR solenoid valve is a pneumatic valve with a special connection pattern of the outputs of the valve. These outputs are normally the ports 2 and 4 of a valve.
Thanks to this standard you place the valve directly on the pneumatic actuator with the same NAMUR standard. Hoses and couplings between the valve and the actuator are therefore not required. The pneumatic actuator ensures the opening and closing of, for example, ball valves and butterfly valves.
Data of NAMUR Pneumatic Solenoid Valves:
| Model No |
4M110-M5 4M120-M5 |
4M110-06 4M120-06 |
4M210-06 4M220-06 |
4M210-08 4M220-08 |
4M310-08 4M320-08 |
4M310-10 4M320-10 |
| Fluid | Air (to be filtered by 40 μm filter element) | |||||
| Port Size | In=Out=M5 | In=Out=1/8'' | In=Out=1/8'' | In=Out=1/4'' | In=Out=1/4'' | In=Out=3/8'' |
| Orifice Size |
5.5mm² (Cv=0.31) |
12.0mm² (Cv=0.67) |
14.0mm² (Cv=0.78) |
16.0mm² (Cv=0.89) |
25.0mm² (Cv=1.40) |
30.0mm² (Cv=1.67) |
| Valve Type | 5 Way 2 Position | |||||
| Operating Pressure | 0.15 to 0.8MPa (21 to 114 PSI) | |||||
| Proof Pressure | 1.5MPa (215PSI) | |||||
| Temperature (℃) | -20 to +70 | |||||
| Body Material | Aluminum Alloy | |||||
| Max. Frequency | 5 Cycle / Second | 4 Cycle / Second | ||||
| Coil Voltages | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC | |||||
| Coil Protection Class | IP65 | |||||
| Activating Time | 0.05 second and below | |||||
Dimension of 4M210-08 Namur Solenoid Valve:
Production Video of Pneumatic Solenoid Valve:
