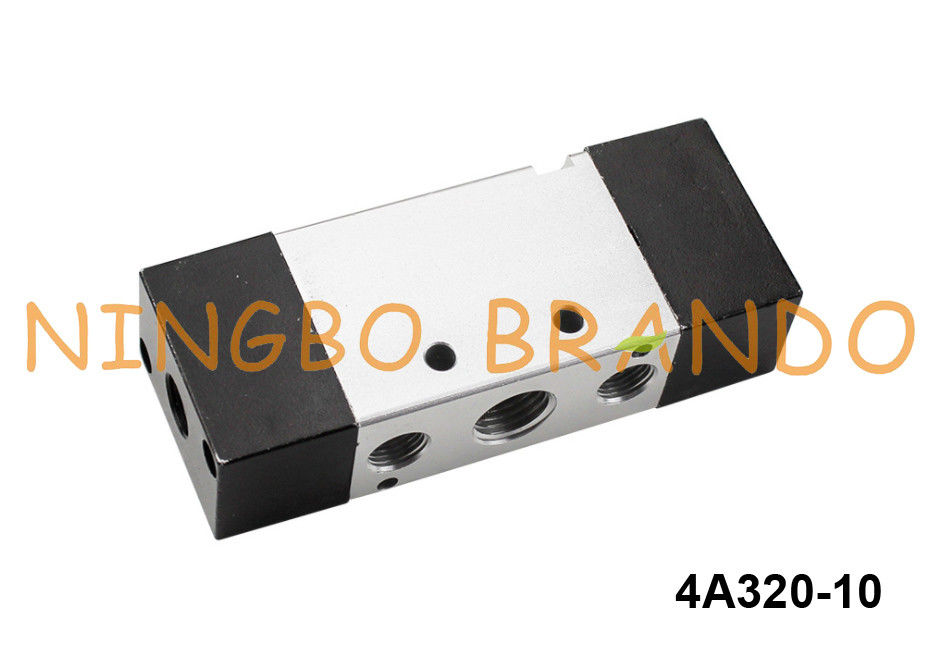

4A320-10 Airtac Type 5/2 Way Double Air Pilot Valve Pneumatic

Large Image : 4A320-10 Airtac Type 5/2 Way Double Air Pilot Valve Pneumatic

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	4A320-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Individual box, Carton, Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	200000 pcs per month

Contact Now

Detailed Product Description

Valve Type:	5 Way 2 Position	Port Size:	In=Out=3/8'', Exhaust=1/4''
Pressure Range:	0.15 To 0.8MPa (21 To 114PSI)	Max Pressure Resistance:	1.5MPa (215PSI)
Body Material:	Aluminum Alloy	4A300 Series:	4A310-08, 4A310-10, 4A320-08, 4A320-10, 4A330C-08, 4A330C-10, 4A330E-08, 4A330E-10, 4A330P-08, 4A330P-10
Max Frequency:	5 Cycle/sec	Acting:	Exterior Control
Highlight:	5/2 Way Double Air Pilot Valve , Pneumatic Air Pilot Valve , 4A320-10 Airtac

4A320-10 Airtac Type 5/2 Way Double Air Pilot Valve Pneumatic

Air pilot valves are operated by an external air source such as a solenoid-operated valve in a remote location. The valve can also be internally air-piloted, enabling use of a smaller integrated electric solenoid to provide an air pilot signal to control the larger valve spool.

Data of 4A300 Series Pneumatic Control Valves:

Model	4A310-08 4A320-08	4A330C-08 4A330E-08 4A330P-08	4A310-10 4A320-10	4A330C-10 4A330E-10 4A330P-10
Fluid	Air (to be filtered by 40 μ m filter element)
Acting	Exterior Control
Port Size	In=Out=Exhaust=1/4''		In=Out=3/8'' Exhaust=1/4''
Orifice Size	25.00 mm2 (Cv=1.40)	18.00 mm2 (Cv=1.00)	30.00 mm2 (Cv=1.68)	18.00 mm2 (Cv=1.00)
Valve Type	5 port 2 position	5 port 3 position	5 port 2 position	5 port 3 position
Operating Pressure	0.15~0.8MPa (21~114psi)
Proof Pressure	1.5MPa (215psi)
Temperature ℃	-20~70
Material of Body	Aluminum alloy
Max. frequency	4 cycle/sec	3 cycle/sec	4 cycle/sec	3 cycle/sec

Dimension of 4A320-10 Pneumatic Air Pilot Valve:

4A320-10 Airtac Type 5/2 Way Double Air Pilot Valve Pneumatic 0

Production Video of BRANDO Pneumatic Valves:

More Pneumatic Products for you to choose:

4A320-10 Airtac Type 5/2 Way Double Air Pilot Valve Pneumatic 1

Manifold Silencer Pneumatic Hose Fittings

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
