K2501 M1183B K2502 M736 1'' Inch CA/RCA25 Pulse Valve Diaphragm Repair Kit

K2501 M1183B K2502 M736 1'' Inch CA/RCA25 Pulse Valve Diaphragm Repair Kit


K2500 M1183 RCA32 nylon seat diaphragm repair kits are composed of one nylon seat buna diaphragm and one stainless steel spring. The K2500 M1183 diaphragm repair kits is for Goyen pulse jet valves RCA32T, CA32T, RCA32DD, CA32DD, RCA32MM, CA32MM, RCA32FS, CA32FS, RCA32FXH, CA32FXH. K2500 diaphragm material is Nitrile (NBR), not suitable for strong solvents and chemical fluids, oil resistant. We use high quality material, the collection equipment efficiency can be improved, the energy loss also can be reduced. K2500 M1183 repair kit has unique geometric diaphragm design , high speed from multiple diaphragm to reach the highest peak in an instant.

YouTube video of K2500 M1183 RCA32 Nylon Seat Buna Diaphragm Kit:


Main dimension of Goyen Type K2500 M1183 Diaphragm Repair Kits:


Details display of K2500 Goyen Type CA/RCA32 Diaphragm Valve Repair Kit:


Available Models of Goyen Type CA/RCA/RCAC Diaphragm Valve Repair Kits:

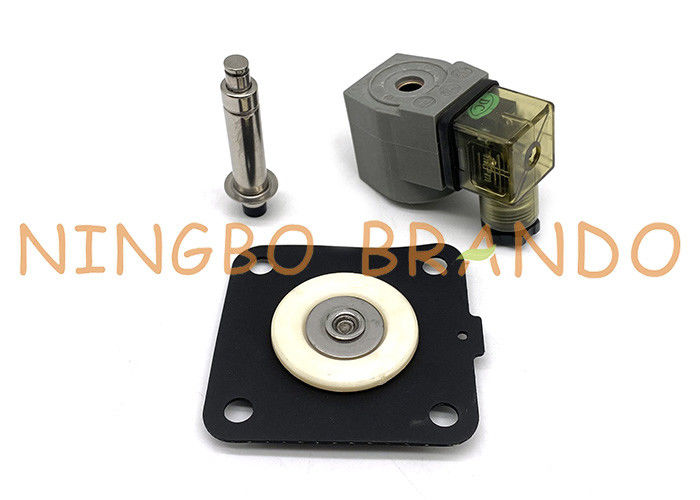

Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.


Brief introduction of diaphragms in pulse jet valves:

The diaphragm is the key component in diaphragm pulse jet valves. It is one of the fittings for the normal operation of the valve body and the "switch" of the injection air circuit of the dust cleaning system of the pulse bag filter. It can easily ensure complete synchronization with other control components to control the injection of pulsed compressed air. So the tightness and softness of the diaphragm play a decisive role in the blowing effect of the pulse valve.

Working Principle: When different pressure (or force) acts on both sides of the diaphragm of the pulse valve, the diaphragm moves to the lower side of the pressure, resulting in the displacement of the center of the diaphragm.

Applications: The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
