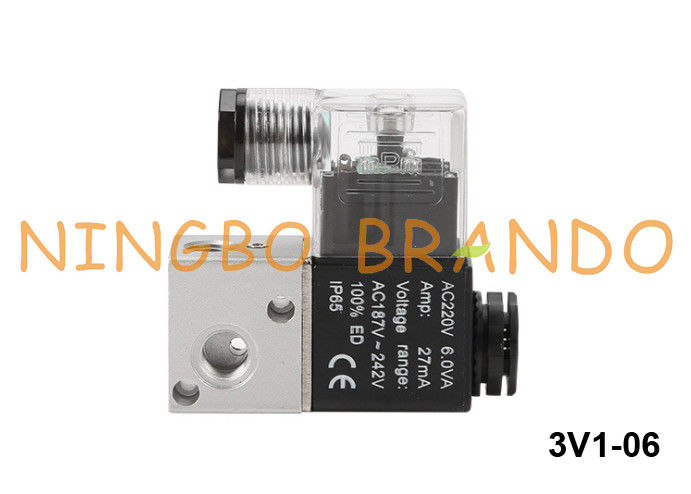

3V1-06 Airtac Type Air Solenoid Valve 3 Way 1/8'' 12V 24V 110V 220V

3V1-06 Airtac Type Air Solenoid Valve 3 Way 1/8'' 12V 24V 110V 220V

3V1-06 Airtac Type Air Solenoid Valve 3 Way 1/8'' 12V 24V 110V 220V
video
3V1-06 Airtac Type Air Solenoid Valve 3 Way 1/8'' 12V 24V 110V 220V
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: 3V1-06
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $3 to $ 5 per pc
Packaging Details: Individual box, Carton, Pallet
Delivery Time: 4 to 7 working days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Fluids: Air (to Be Filtered By 40 μ M Filter Element) Action: Direct Acting
Function: 3 Way, Normally Closed (NC) Orifice Size: 1.0mm
Port Size: 1/8'' Pressure Range: 0 To 0.8MPa
Max Pressure Resistance: 1.2MPa Body Material: Aluminum Alloy
Max. Frequency: 10 Cycle / Second Voltage: 12VDC, 24VDC, 110VAC, 220VAC
High Light:

3V1-06 Solenoid Valve

,

3 Way Air Solenoid Valve

,

Pneumatic Air Solenoid Valves

3V1-06 Airtac Type Air Solenoid Valve 3 Way 1/8'' 12V 24V 110V 220V



Product Features:



1. 3V1 solenoid valve are an effective way to convert electrical signals into pneumatic functions. Applying power to the solenoid valve can quickly direct air through the valve into the circuit. The solenoid valve can be designated as an internal pilot or an external pilot. The external pilot valve uses an external air pressure source. Internal driving uses an internal air pressure source.



2. This 3V1 solenoid valve has a direct-acting and normally-closed type and its direction change is flexible. It can be used without lubrication. It can be fitted with multiple valves to save installation space. It is equipped with an attached manual device, so it is very easy to install and debug. It is available in several standard voltage levels.



Technical Data of 3V1 Series Pneumatic Solenoid Valves:

Model 3V1-M5 3V1-06 3V1-08
Medium Air (to be filtered by 40 μ m filter element)
Action Direct Acting
Way & Position 3 Port 2 Position
Port Size M5 1/8'' 1/4''
Orifice Size 1.0mm
Pressure Range 0 to 0.8MPa
Max. Resistance Pressure 1.2 MPa
Coil Voltage 12VDC, 24VDC, 110VAC, 220VAC
Coil Power AC: 5.5VA, DC: 4.8W
Max. Frequency 10 cycle/sec


Dimension of 3V1-06 Pneumatic Solenoid Valve:

3V1-06 Airtac Type Air Solenoid Valve 3 Way 1/8'' 12V 24V 110V 220V 0



Production Video of Pneumatic Solenoid Valves:



More Pneumatic Products for you to choose:



3V1-06 Airtac Type Air Solenoid Valve 3 Way 1/8'' 12V 24V 110V 220V 13V1-06 Airtac Type Air Solenoid Valve 3 Way 1/8'' 12V 24V 110V 220V 24v210-08

                    2/2 Way                                      3/2 Way                        5/2 Way, Single Solenoid

a1a1pneumatic fast fittings

     5/2 Way, Double Solenoid        5/3 Way, Double Solenoid         Pneumatic Hose Fittings
