| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 3V1-06 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 200000 pcs per month |
| Fluids: | Air (to Be Filtered By 40 μ M Filter Element) | Action: | Direct Acting |
|---|---|---|---|
| Function: | 3 Way, Normally Closed (NC) | Orifice Size: | 1.0mm |
| Port Size: | 1/8'' | Pressure Range: | 0 To 0.8MPa |
| Max Pressure Resistance: | 1.2MPa | Body Material: | Aluminum Alloy |
| Max. Frequency: | 10 Cycle / Second | Voltage: | 12VDC, 24VDC, 110VAC, 220VAC |
| Highlight: | 3 Way 2 Position Pneumatic Solenoid Valve,3V1-06 Pneumatic Solenoid Valve,Airtac 3V1-06 |
||

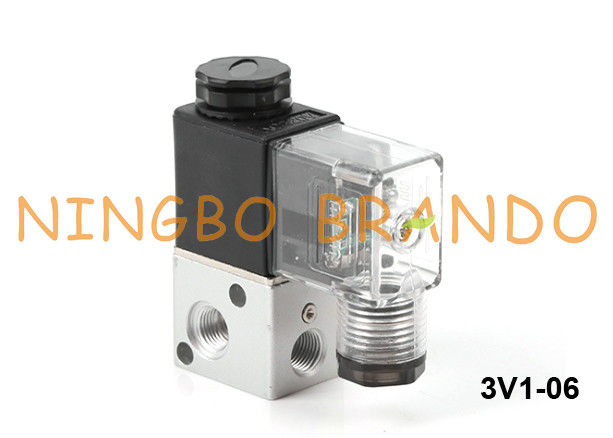

3V1-06 Airtac Type Pneumatic Solenoid Valve 3 Way 2 Position 24VDC
Product Features of 3V1 series solenoid valve:
1. Direct acting type and normally closed mode, flexible in direction change.
2. No need to add oil for lubrication.
3. Several valves can be installed integrately to save installation space.
4. Affiliated manual devices are equipped to facilitate installation and debugging.
5. Several standard voltage grades are optional.
Technical Data of 3V1 Series Pneumatic Solenoid Valves:
| Model | 3V1-M5 | 3V1-06 | 3V1-08 |
| Medium | Air (to be filtered by 40 μ m filter element) | ||
| Action | Direct Acting | ||
| Way & Position | 3 Port 2 Position | ||
| Port Size | M5 | 1/8'' | 1/4'' |
| Orifice Size | 1.0mm | ||
| Pressure Range | 0 to 0.8MPa | ||
| Max. Resistance Pressure | 1.2 MPa | ||
| Coil Voltage | 12VDC, 24VDC, 110VAC, 220VAC | ||
| Coil Power | AC: 5.5VA, DC: 4.8W | ||
| Max. Frequency | 10 cycle/sec | ||
Dimension of 3V1-06 Pneumatic Solenoid Valve:
Production Video of Pneumatic Solenoid Valves:
More Pneumatic Products for you to choose:
2/2 Way 3/2 Way 5/2 Way, Single Solenoid
5/2 Way, Double Solenoid 5/3 Way, Double Solenoid Pneumatic Hose Fittings
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
