| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | SCG353A047 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Type: | Right Angle Type Diaphragm Valve | Power: | Solenoid |
|---|---|---|---|
| Media: | Air | Port Size: | 1-1/2'' 1.5'' Inch |
| Structure: | Diaphragm | Body Material: | Aluminum Alloy |
| Diaphragm Material: | NBR(Common), FKM(Available) | Number Of Diaphragm: | 2 |
| Pressure: | 0.1 To 0.8MPa | Temperature: | -25 To +80℃ |
| High Light: | C113447 Diaphragm Pulse Valve,SCG353A047 Dust Collector Pulse Valve,SCG353A047 ASCO Type Valve |
||

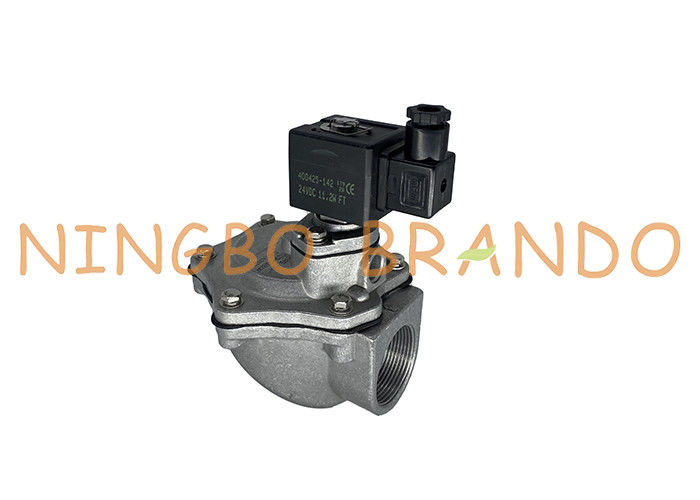

SCG353A047 1-1/2'' Inch C113447 Diaphragm Dust Collector Pulse Valve
VALVE DISASSEMBLY
Disassemble in an orderly fashion. Pay careful attention to exploded
views provided for identification of parts.
1. Remove retaining clip and slip the entire solenoid enclosure off the solenoid base sub-assembly. CAUTION: when metal mretaining clip disengages, it can spring upwards.
2. Unscrew solenoid base sub-assembly and remove core assembly, core spring and solenoid base sub-assembly O-ring.
3. Unscrew bonnet screws (8x) and remove pilot bonnet, pilot diaphragm/seat assembly, valve bonnet, spring and diaphragm assembly.
4. All parts are now accessible for cleaning or replacement.
Note:
1. Turn off electrical power supply and de-energise the electrical circuit and voltage carrying parts before starting work.
2. All electrical screw terminals must be properly tightened according to the standards before putting into service.
2. Dependent upon the voltage electrical components must be provided with an earth connection and satisfy local regulations and standards.
Technical Data of ASCO Pulse Jet Valve:
|
Model No
|
SCG353A043
|
SCG353A044
|
SCG353A047
|
SCG353A050
|
SCG353A051
|
|
Port Size
|
G3/4''
|
G1''
|
G1-1/2''
|
G2''
|
G2-1/2''
|
|
Nominal Size
|
φ20mm
|
φ25mm
|
φ40mm
|
φ50mm
|
φ62mm
|
|
Working Pressure
|
0.3 to 0.8MPa
|
||||
|
Environment Temperature
|
-5 to +55℃
|
||||
|
Relative Humidity
|
≤85%
|
||||
|
Operating Medium
|
Dry clean compressed air
|
||||
|
Service Life
|
Over one million times
|
||||
|
Voltages
|
AC24V, AC110V, AC220V, DC24V
|
||||
Main Dimension:
353 Series Pulse Jet Valve For Dust Collector System:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Mia
Tel: +8613454729544
