| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | G353A045 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Type: | Right Angle Type Diaphragm Valve | Power: | Pneumatic |
|---|---|---|---|
| Media: | Air | Port Size: | 1-1/2'' 1.5'' Inch |
| Structure: | Diaphragm | Body Material: | Aluminum Alloy |
| Diaphragm Material: | NBR(Common), FKM(Available) | Number Of Diaphragm: | 1 |
| Pressure: | 0.1 To 0.8MPa | Temperature: | -25 To +80℃ |
| High Light: | Dual Stage Pulse Jet Valve,1.5'' Inch Pulse Jet Valve,G353A045 Pilot Solenoid Valve |
||
G353A045 Dual Stage Remote Pilot 1-1/2'' 1.5'' Inch Pulse Jet Valve
Single Stage, remote pilot, threaded body pulse valve.
The ASCO Type diaphragm pulse valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to provide reliable and economical operation.
The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications.
ASCO Type Pulse Valves can be supplied according to ATEX Directive 94/9/EC for non-electrical equipment by using suffix GD.
The ASCO Type Pulse Valve 1½" G353A045 components satisfy all relevant EC directives.
Technical Data of ASCO Pulse Jet Valve:

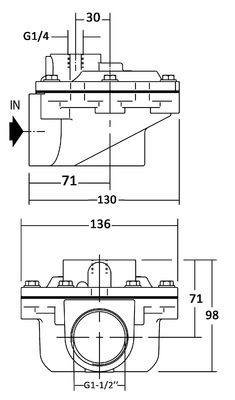

Main Dimension:
353 Series Pulse Jet Valve For Dust Collector System:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Mia
Tel: +8613454729544
